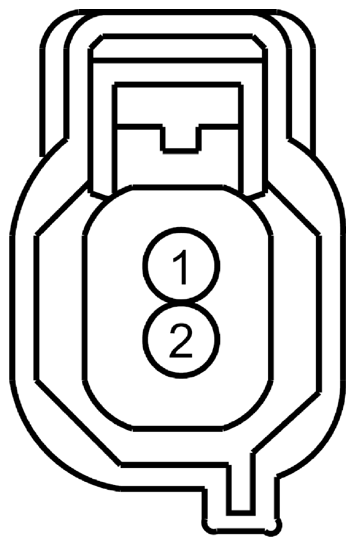

Subwoofer, Left Connector End View (C4448)

Fig 1: Identifying Subwoofer - Left Connector (C4448)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VME72 (WH)	18	CTRL MOD. - AUDIO # SPEAKER SUBWOOFER LEFT REAR 2 +
2	RME72 (BU-GN)	18	CTRL MOD. - AUDIO # SPEAKER SUBWOOFER LEFT REAR 2 -

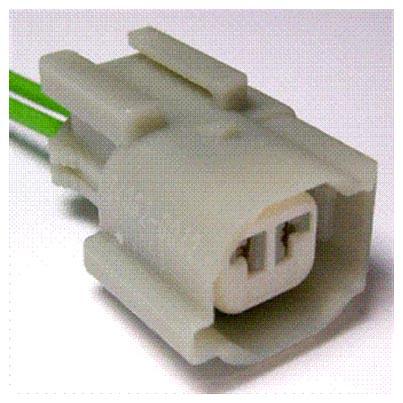

Available Pigtail Kits
Pigtail Kit Part Number WPT-1116	Service Part Number: AU2Z-14S411-BJA  Gauge: 16  Pin material: Silver  Cavities: 2  Vehicle Uses Lamp - Running Board Sensor - Knock Sensor - Speed Sensor - Water in Fuel
