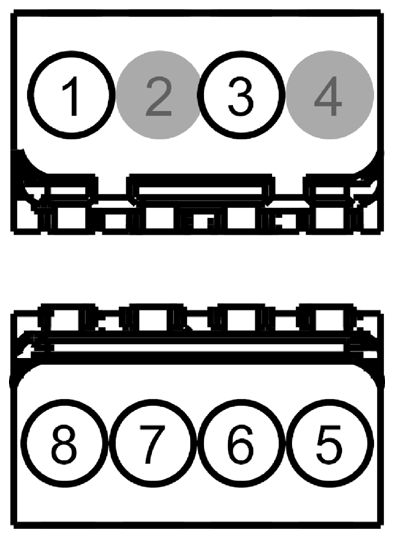

Splice Block 52 Connector End View (C4442)

Fig 1: Identifying Splice Block 52 Connector (C4442)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VDB29 (GN)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH
2	*	*	Not Used
3	VDB30 (WH)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW
4	*	*	Not Used
5	VDB29 (GN)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH
6	VDB29 (GN)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH
7	VDB30 (WH)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW
8	VDB30 (WH)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW
