Splice Block 45 Connector End View (C4441)

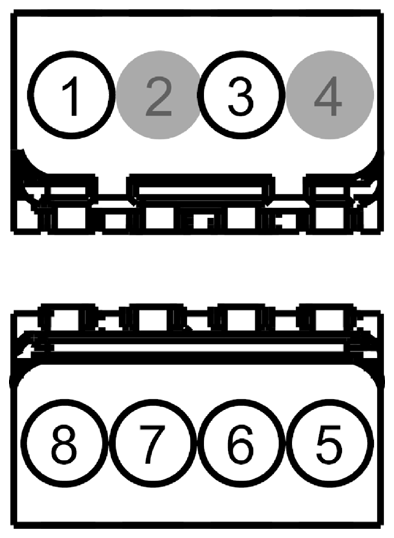

Fig 1: Identifying Splice Block 45 Connector (C4441)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VDB06 (GY)	26	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH
2	*	*	Not Used
3	VDB07 (VT)	26	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW
4	*	*	Not Used
5	VDB06 (GY)	26	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH
6	VDB06 (GY)	26	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH
7	VDB07 (VT)	26	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW
8	VDB07 (VT)	26	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW
