Safety Belt Inflator, 2ND Row, Left Connector End View (C3644)

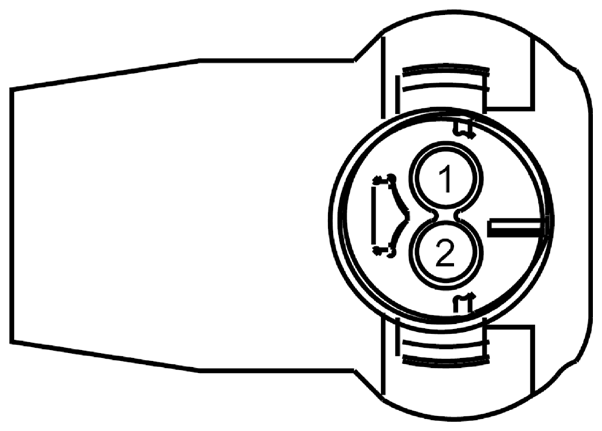

Fig 1: Identifying Safety Belt Inflator - 2nd Row Left Connector (C3644)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CR180 (YE)	20	CTRL MOD. - INFLATABLE SEAT BELT ROW 2 DRIVER +
2	RR180 (BN-GN)	20	CTRL MOD. - INFLATABLE SEAT BELT ROW 2 DRIVER -

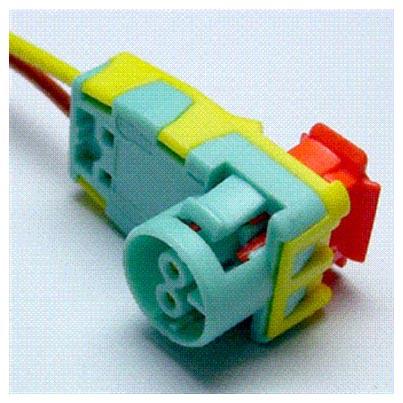

Available Pigtail Kits
Pigtail Kit Part Number WPT-1226	Service Part Number: BU2Z-14S411-BJA  Gauge: 20  Pin material: FCI - Airbag  Cavities: 2  Vehicle Uses Squib - Airbag (Passenger)
