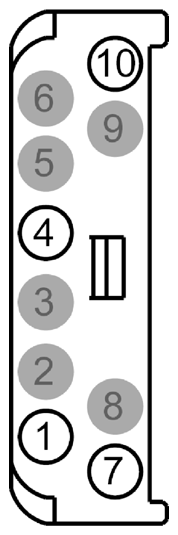

Rear Window Blind Module Connector End View (C9084)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CPR87 (VT) | 20 | SWITCH - SHADE REAR WINDOW CLOSE | |
| 2 | * | * | Not Used | |
| 3 | * | * | Not Used | |
| 4 | CLS28 (BU-WH) | 22 | CTRL MOD. - RELAY REVERSE LAMP CONTROL (RLC) | |
| 5 | * | * | Not Used | |
| 6 | * | * | Not Used | |
| 7 | CBP38 (GY-BU) | 18 | FUSE - 38 OR CIRCUIT BREAKER | |
| 8 | * | * | Not Used | |
| 9 | * | * | Not Used | |
| 10 | GD383 (BK-WH) | 20 | GROUND - CROSS MEMBER MIDDLE PASSENGER OR RIGHT |

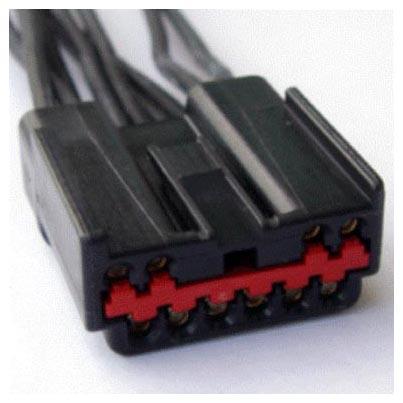

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-504 | Service Part Number: 3U2Z-14S411-SAA Gauge: 14 Pin material: Tin Cavities: 9 Vehicle Uses
|
