Power DECKLID Chime Connector End View (C4186)

Fig 1: Identifying Power Decklid Chime Connector (C4186)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPR56 (VT-BN)	22	CTRL MOD. - POWER LUGGAGE COMPARTMENT # CHIME +
2	RPR56 (GY-VT)	22	CTRL MOD. - POWER LUGGAGE COMPARTMENT # CHIME -

Available Pigtail Kits

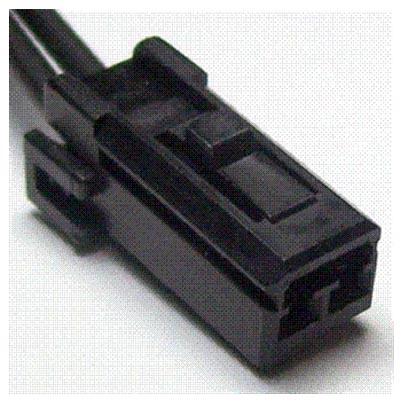

Pigtail Kit Part Number WPT-1322	Service Part Number: 3U2Z-14S411-CSAB  Gauge: 18  Pin material: Tin (greased)  Cavities: 2  Vehicle Uses Lamp - Dome Lamp - Dome/Map Module - Radio Power Antenna Module - Warning Chime/Beltminder Solenoid - Brake Shift Park Interlock Speaker - Reverse Park Aid (RPA)

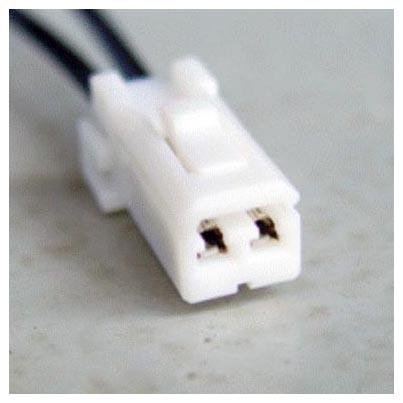

Pigtail Kit Part Number WPT-675	Service Part Number: 3U2Z-14S411-CSAA  Gauge: 16  Pin material: Tin  Cavities: 2  Vehicle Uses Lamp - PRNDL Indicator Module - Driver Door Module - Heated Seat (driver) Sensor - Fuel Tank Temperature
