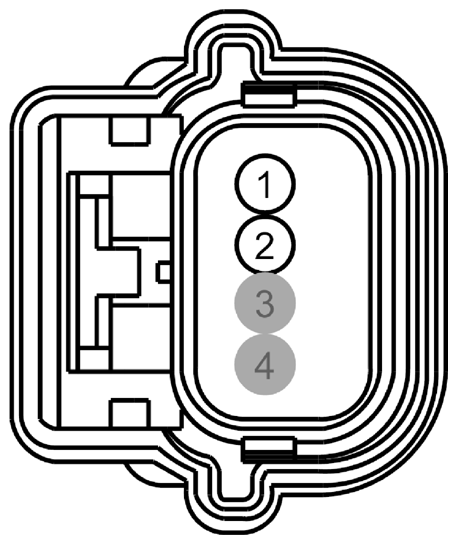

Keyless Entry Rear Antenna Connector End View (C4817)

Fig 1: Identifying Keyless Entry Rear Antenna Connector (C4817)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VPK06 (GY-VT)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 2 (CENTER) +
2	RPK06 (BU-WH)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 2 (CENTER) -
3	*	*	Not Used
4	*	*	Not Used

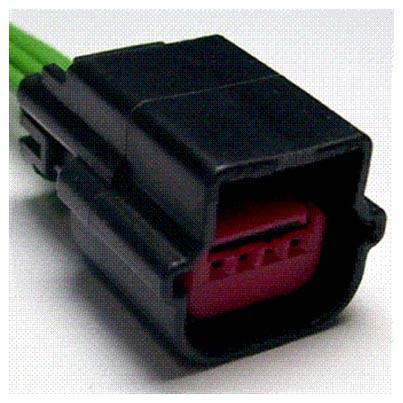

Available Pigtail Kits
Pigtail Kit Part Number WPT-1307	Service Part Number: CU2Z-14S411-AGA  Gauge: 18  Pin material: Silver  Cavities: 4  Vehicle Uses Antenna - Keyless Entry Sensor - Brake Pedal Position Sensor - Clutch Master Cylinder
