Height Sensor, Left Rear Connector End View (C3653)

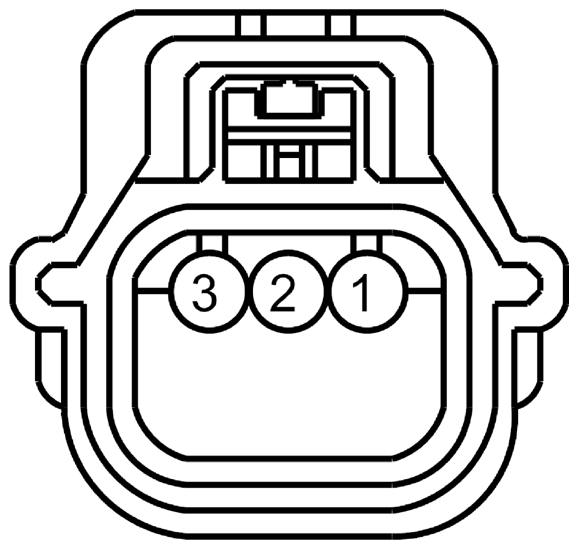

Fig 1: Identifying Height Sensor - Left Rear Connector (C3653)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VCD12 (VT-WH)	18	SENSOR - SUSPENSION VERTICAL POSITION REAR LEFT
2	RCD23 (WH-BN)	18	CTRL MOD. - CDC # SENSORS 2 -
3	LCD23 (GN-OG)	18	CTRL MOD. - CDC # SENSORS 2 +

Available Pigtail Kits

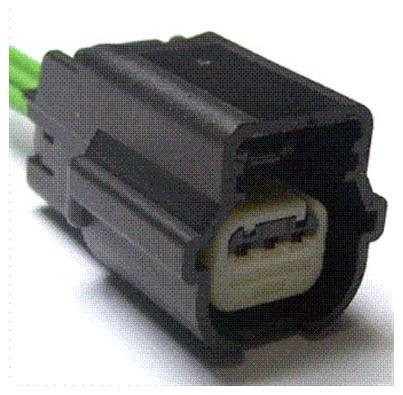

Pigtail Kit Part Number WPT-926	Service Part Number: 9U2Z-14S411-CA  Gauge: 18  Pin material: Silver  Cavities: 3  Vehicle Uses Sensor - Front Park Aid (FPA) Sensor - Reverse Park Aide (RPA) Switch - A/C Compressor Clutch Cycling

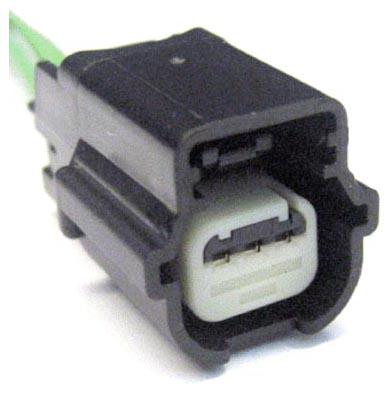

Pigtail Kit Part Number WPT-1315	Service Part Number: 9U2Z-14S411-CB  Gauge: 20  Pin material: Silver  Cavities: 3  Vehicle Uses Monitor - Crankcase Ventilation Sensor - Air Suspension Sensor - Front Park Aid (FPA) Sensor - Occupant Classification Sensor - Reverse Park Aide (RPA) Switch - A/C Compressor Clutch Cycling Switch - A/C High Pressure
