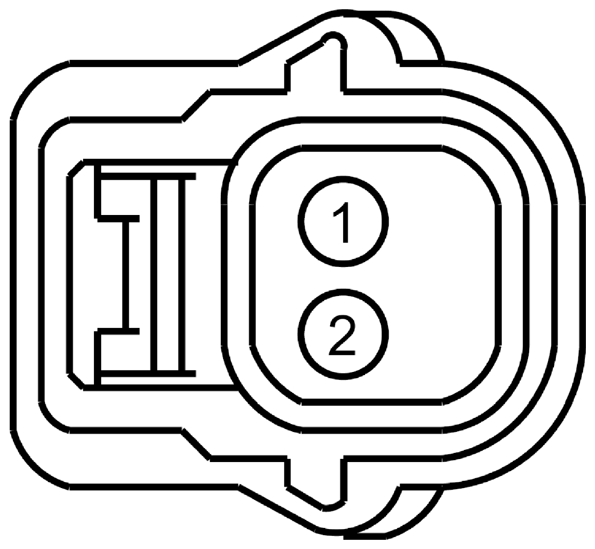

Active Torque Control Coupling (ATCC) Solenoid Connector End View (C4347)

Fig 1: Identifying Active Torque Control Coupling Solenoid Connector (C4347)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CCF21 (VT-WH)	18	CTRL MOD. - POWERTRAIN # FOUR WHEEL DRIVE INTELLIGENT TORQUE CONTROL COUPLING SOLENOID +
2	RCF21 (WH-VT)	18	CTRL MOD. - POWERTRAIN # FOUR WHEEL DRIVE INTELLIGENT TORQUE CONTROL COUPLING SOLENOID -

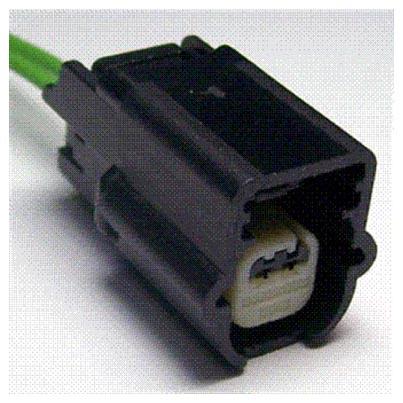

Available Pigtail Kits
Pigtail Kit Part Number WPT-1314	Service Part Number: 8U2Z-14S411-AAC  Gauge: 20  Pin material: Silver  Cavities: 2  Vehicle Uses Sensor - Crash (Engine Compartment) Sensor - Seat Track Position Sensor - Side Impact Solenoid - Down Shift Solenoid - Torque Control Coupling Valve - Heated PCV Valve - Heater Core Shut Off Valve - Transmission Fluid Warmer
Pigtail Kit Part Number WPT-1216	Service Part Number: 8U2Z-14S411-AAB  Gauge: 18  Pin material: Silver  Cavities: 2  Vehicle Uses Sensor - Crash (Engine Compartment) Sensor - Seat Track Position Sensor - Side Impact Solenoid - Down Shift Valve - Heated PCV
