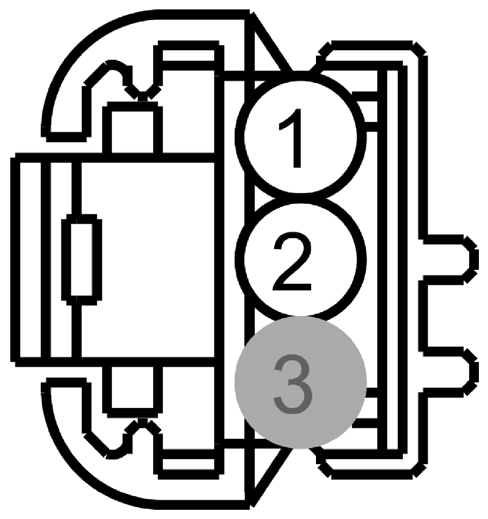

Active Noise Control Microphone-3 Connector End View (C9225)

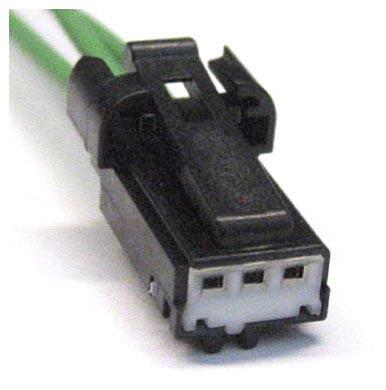

Fig 1: Identifying Active Noise Control Microphone - 3 Connector (C9225)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function
1	VMEA0 (BU)	26	MICROPHONE - AMBIENT NOISE 3 +
2	RMEA0 (WH)	26	MICROPHONE - AMBIENT NOISE 3 -
3	*	*	Not Used

Available Pigtail Kits
Pigtail Kit Part Number WPT-911	Service Part Number: 8U2Z-14S411-LA Gauge: 18 Pin material: Silver Cavities: 3 Vehicle Uses Fuse Panel Junction Block Lamp - Ambient Lighting Lamp - Front Park Lamp - Map Lamp - Park/Turn Lamp - PRNDL Indicator Lamp - Roof Marker Module - Driver Door Sensor - Speed Switch - Ambient Lighting Dimmer
