Active Noise Control Microphone Connector End View (C9226)

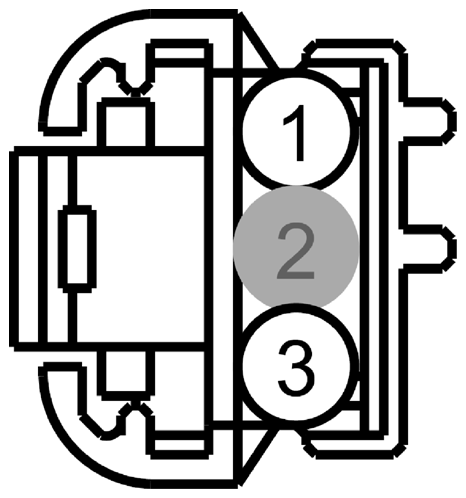

Fig 1: Identifying Active Noise Control Microphone Connector (C9226)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VME96 (GN-WH)	22	CTRL MOD. - AUDIO # SPEAKER CENTER FRONT TWEETER +
2	*	*	Not Used
3	RME96 (GY-VT)	22	CTRL MOD. - AUDIO # SPEAKER CENTER FRONT TWEETER -

Available Pigtail Kits

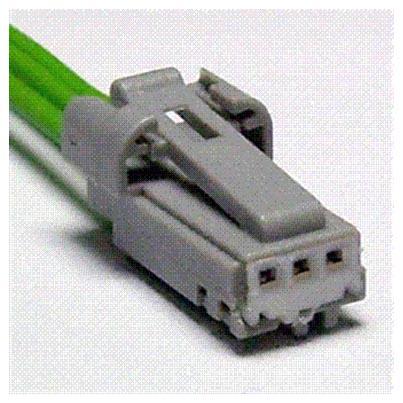

Pigtail Kit Part Number WPT-1182	Service Part Number: BU2Z-14S411-AFA  Gauge: 18  Pin material: Silver  Cavities: 3  Vehicle Uses Microphone
