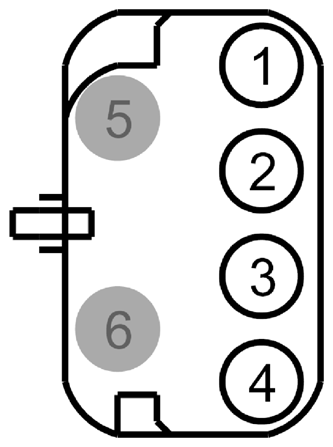

Subwoofer Amplifier Connector End View (C466B)

Fig 1: Identifying Subwoofer Amplifier Connector (C466B)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VME72 (WH)	22	CTRL MOD. - AUDIO # SPEAKER SUBWOOFER LEFT REAR 2 +
2	RME72 (BU-GN)	22	CTRL MOD. - AUDIO # SPEAKER SUBWOOFER LEFT REAR 2 -
3	VME73 (WH-BN)	22	CTRL MOD. - AUDIO # SPEAKER SUBWOOFER RIGHT REAR 2 +
4	RME73 (VT-OG)	22	CTRL MOD. - AUDIO # SPEAKER SUBWOOFER RIGHT REAR 2 -
5	*	*	Not Used
6	*	*	Not Used

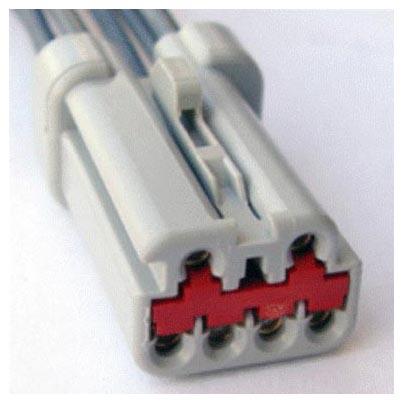

Available Pigtail Kits
Pigtail Kit Part Number WPT-663	Service Part Number: 3U2Z-14S411-ANAA  Gauge: 16  Pin material: Tin  Cavities: 6  Vehicle Uses Motor - Heater/AC Blower (Front)
