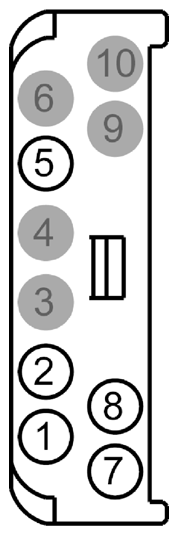

Subwoofer Amplifier Connector End View (C466A)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | SME23 (VT-RD) | 22 | CTRL MOD. - AUDIO # SUBWOOFER/AMPLIFIER ENABLE | |
| 2 | GD313 (BK-GN) | 16 | GROUND - PILLAR C OR QUARTER PANEL RIGHT # 2ND POINT | |
| 3 | * | * | Not Used | |
| 4 | * | * | Not Used | |
| 5 | SBP05 (GY-RD) | 18 | FUSE - 5 OR CIRCUIT BREAKER | |
| 6 | * | * | Not Used | |
| 7 | VME22 (VT-GN) | 22 | CTRL MOD. - AUDIO # SUBWOOFER/AMPLIFIER AUDIO + | |
| 8 | RME22 (GN-WH) | 22 | CTRL MOD. - AUDIO # SUBWOOFER/AMPLIFIER AUDIO - | |
| 9 | * | * | Not Used | |
| 10 | * | * | Not Used |

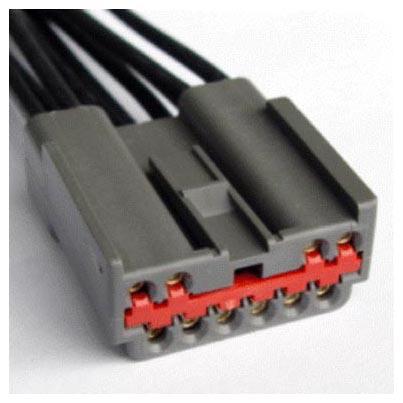

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-667 | Service Part Number: 3U2Z-14S411-CAAA Gauge: 14 Pin material: Tin Cavities: 10 Vehicle Uses
|
