Splice Block 5 Connector End View (C902)

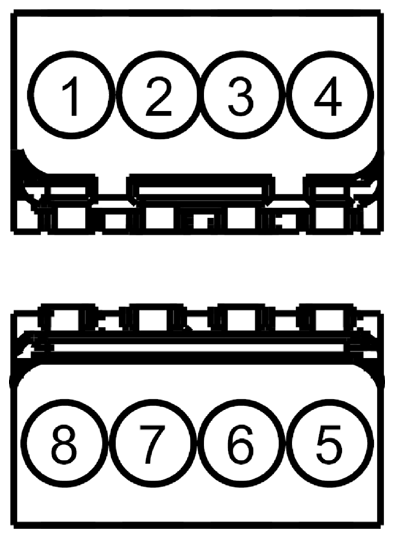

Fig 1: Identifying Splice Block 5 Connector (C902)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CLN09 (YE-GN)	22	RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING)
2	CLN09 (YE-GN)	22	RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING)
3	GD382 (BK-GY)	22	GROUND - CROSS MEMBER MIDDLE DRIVER OR LEFT
4	GD382 (BK-GY)	22	GROUND - CROSS MEMBER MIDDLE DRIVER OR LEFT
5	CLN09 (YE-GN)	22	RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING)
6	CLN09 (YE-GN)	22	RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING)
7	GD382 (BK-GY)	22	GROUND - CROSS MEMBER MIDDLE DRIVER OR LEFT
8	GD382 (BK-GY)	22	GROUND - CROSS MEMBER MIDDLE DRIVER OR LEFT
