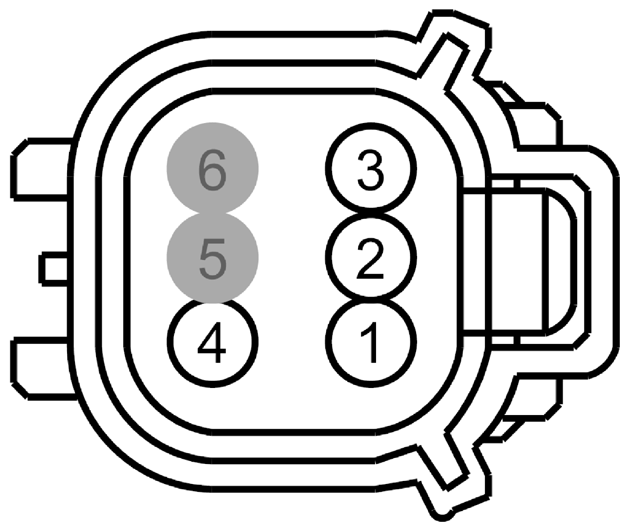

Reversing Lamp Connector End View (C451)

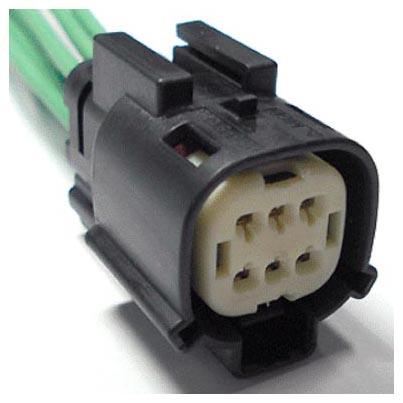

Fig 1: Identifying Reversing Lamp Connector (C451)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function
1	CLS05 (BU-GY)	20	CTRL MOD. - PARK
2	CLS28 (BU-WH)	20	CTRL MOD. - RELAY REVERSE LAMP CONTROL (RLC)
3	CLS17 (YE-GY)	22	CTRL MOD. - STOP HIGH MOUNT
4	GD347 (BK-VT)	22	GROUND - PILLAR C OR QUARTER PANEL LEFT
5	*	*	Not Used
6	*	*	Not Used

Available Pigtail Kits
Pigtail Kit Part Number WPT-971	Service Part Number: 3U2Z-14S411-FEAB Gauge: 14 Pin material: Silver Cavities: 6 Vehicle Uses Connector - Inline Lamp - Headlamp - High/Low Beam Lamp - Park/Turn/Stop Motor - Engine Cooling Fan Motor - Running Board
