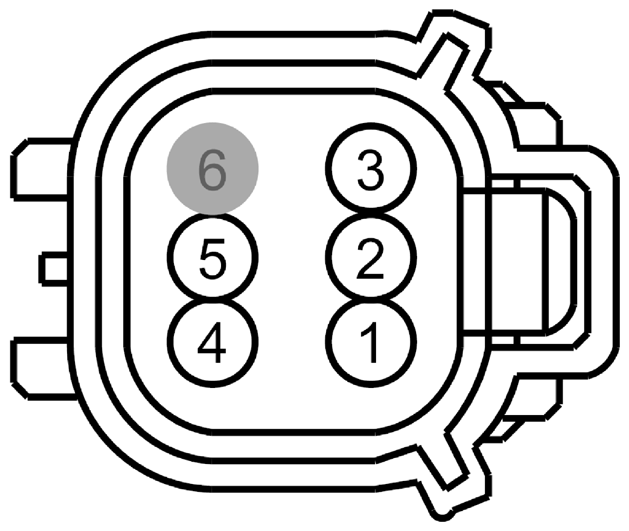

Rear Lamp Assembly RH Connector End View (C415)

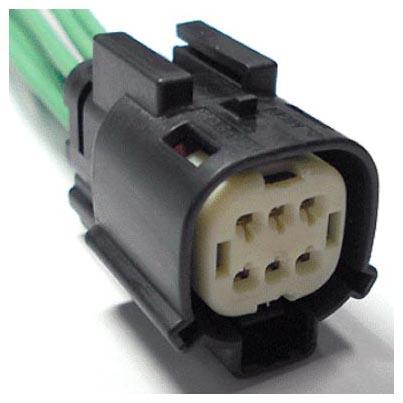

Fig 1: Identifying Rear Lamp Assembly RH Connector (C415)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CLS53 (GY-VT)	22	CTRL MOD. - STOP/TURN RIGHT OUTBOARD
2	CLS05 (BU-GY)	22	CTRL MOD. - PARK FRONT LEFT OR FRONT/REAR LEFT	Fusion
2	CLS27 (GN-OG)	22	CTRL MOD. - TURN LAMP RIGHT REAR	MKZ
3	CLS07 (BN-YE)	22	CTRL MOD. - PARK FRONT RIGHT OR FRONT/REAR RIGHT	MKZ
3	CLS27 (GN-OG)	22	CTRL MOD. - TURN LAMP RIGHT REAR	Fusion
4	GD313 (BK-GN)	20	GROUND - PILLAR C OR QUARTER PANEL RIGHT # 2ND POINT	Fusion
4	GD347 (BK-VT)	22	GROUND - PILLAR C OR QUARTER PANEL LEFT	MKZ
5	CLS54 (BU-OG)	22	LAMP - TURN REAR RIGHT # SIGNAL OUT
6	*	*	Not Used

Available Pigtail Kits
Pigtail Kit Part Number WPT-971	Service Part Number: 3U2Z-14S411-FEAB  Gauge: 14  Pin material: Silver  Cavities: 6  Vehicle Uses Connector - Inline Lamp - Headlamp - High/Low Beam Lamp - Park/Turn/Stop Motor - Engine Cooling Fan Motor - Running Board
