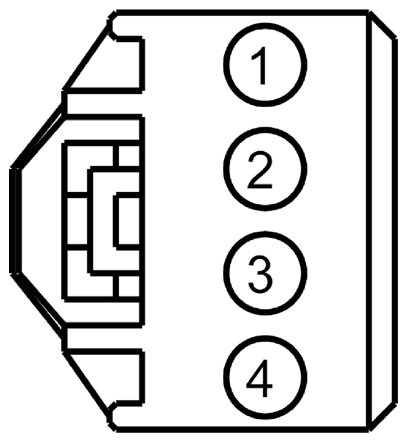

Rear Door Speaker LH Connector End View (C735)

Fig 1: Identifying Rear Door Speaker LH Connector (C735)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VME09 (WH-GN)	18	CTRL MOD. - AUDIO # SPEAKER LEFT REAR (WOOFER) +
2	VME39 (GN-BN)	20	CTRL MOD. - AUDIO # SPEAKER LEFT REAR TWEETER +
3	RME39 (GY-BN)	20	CTRL MOD. - AUDIO # SPEAKER LEFT REAR TWEETER -
4	RME09 (BN-YE)	18	CTRL MOD. - AUDIO # SPEAKER LEFT REAR (WOOFER) -

Available Pigtail Kits
Pigtail Kit Part Number WPT-912	Service Part Number: 8U2Z-14S411-HA  Gauge: 14  Pin material: Tin  Cavities: 4  Vehicle Uses Sensor - Oil Temperature Sensor - Power Steering Pressure Sensor - Purge Flow Switch - Gear Shift Select/Neutral Safety
