Rear Door Latch Release Motor RH Connector End View (C805)

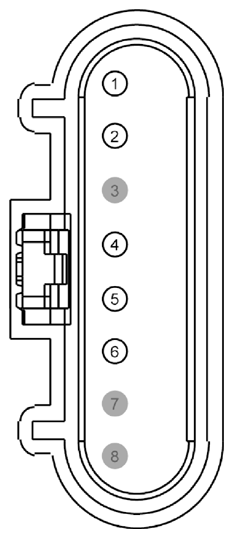

Fig 1: Identifying Rear Door Latch Release Motor RH Connector (C805)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPL13 (BN-GN)	14	CTRL MOD. - DOOR LOCK # ALL UNLOCK
2	CPL11 (GY-BN)	14	CTRL MOD. - DOOR LOCK # ALL LOCK
3	*	*	Not Used
4	RPL72 (BN-WH)	22	CTRL MOD. - DOOR LOCK # LATCH REAR PASSENGER SIDE
5	CPL70 (WH-BN)	22	SWITCH - LATCH REAR PASSENGER SIDE # CHILD LOCK FEEDBACK
6	CPL39 (YE)	22	SWITCH - LATCH REAR PASSENGER SIDE # AJAR (INCL. SLIDING DOOR)
7	*	*	Not Used
8	*	*	Not Used

Available Pigtail Kits
Pigtail Kit Part Number WPT-1366	Service Part Number: 3U2Z-14S411-MBB  Gauge: 16  Pin material: Silver  Cavities: 8  Vehicle Uses Actuator - Door Lock - LH - Front Actuator - Door Lock - LH - Rear Actuator - Door Lock - RH - Front Actuator - Door Lock - RH - Rear Module - Liftgate Switch - Door Ajar/Interior Lamp Switch - Door Lock (LH) Switch - Door Lock (RH) Switch - Sliding Door Contact
