Rear Door Latch Release Motor LH Connector End View (C705)

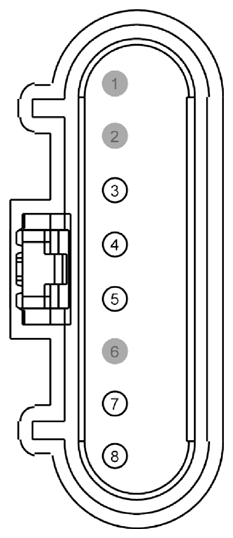

Fig 1: Identifying Rear Door Latch Release Motor LH Connector (C705)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function
1	*	*	Not Used
2	*	*	Not Used
3	CPL36 (GN)	22	SWITCH - LATCH REAR DRIVER SIDE # AJAR (INCL. SLIDING DOOR)
4	CPL69 (YE-VT)	22	SWITCH - LATCH REAR DRIVER SIDE # CHILD LOCK FEEDBACK
5	RPL71 (BU)	22	CTRL MOD. - DOOR LOCK # LATCH REAR DRIVER SIDE
6	*	*	Not Used
7	CPL11 (GY-BN)	14	CTRL MOD. - DOOR LOCK # ALL LOCK
8	CPL13 (BN-GN)	14	CTRL MOD. - DOOR LOCK # ALL UNLOCK

Available Pigtail Kits
Pigtail Kit Part Number WPT-1366	Service Part Number: 3U2Z-14S411-MBB Gauge: 16 Pin material: Silver Cavities: 8 Vehicle Uses Actuator - Door Lock - LH - Front Actuator - Door Lock - LH - Rear Actuator - Door Lock - RH - Front Actuator - Door Lock - RH - Rear Module - Liftgate Switch - Door Ajar/Interior Lamp Switch - Door Lock (LH) Switch - Door Lock (RH) Switch - Sliding Door Contact
