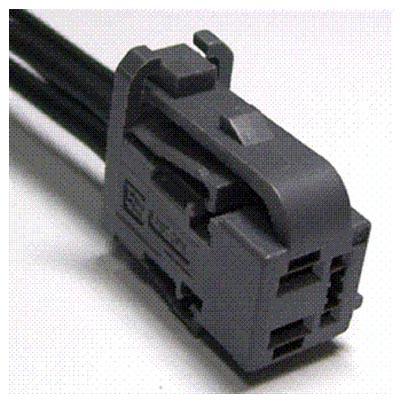

Passenger Seat Horizontal Motor Connector End View (C332)

Fig 1: Identifying Passenger Seat Horizontal Motor Connector (C332)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPS23 (GN-VT)	14	SWITCH - SEAT ADJUST. DRIVER FORWARD
2	*	*	Not Used
3	CPS28 (GN)	14	SWITCH - SEAT ADJUST. DRIVER REARWARD
4	*	*	Not Used

Available Pigtail Kits
Pigtail Kit Part Number WPT-1350	Service Part Number: DU2Z-14S411-UA  Gauge: 16 20  Pin material: Tin  Cavities: 4  Vehicle Uses Motor - Power Seat Track Motor - Seat Height (Front)
