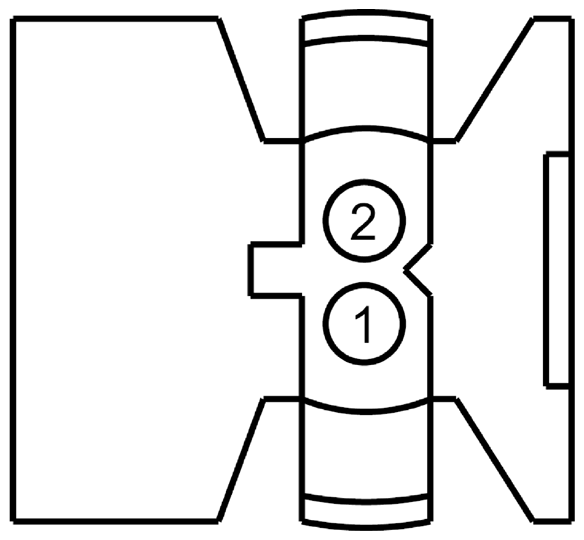

Passenger Safety Belt Retractor PRETENSIONER Connector End View (C303)

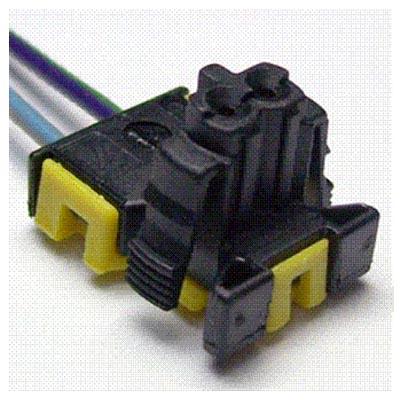

Fig 1: Identifying Passenger Safety Belt Retractor Pretensioner Connector (C303)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CR171 (VT-GN)	20	CTRL MOD. - SEAT BELT PRETENSIONER FRONT PASSENGER OUTBOARD (#2) +
2	RR171 (GY)	20	CTRL MOD. - SEAT BELT PRETENSIONER FRONT PASSENGER OUTBOARD (#2) -

Available Pigtail Kits
Pigtail Kit Part Number WPT-1230	Service Part Number: BU2Z-14S411-BPA  Gauge: 20  Pin material: FCI - Airbag  Cavities: 2  Vehicle Uses Airbag - Side Curtain Squib - Airbag (Passenger)
