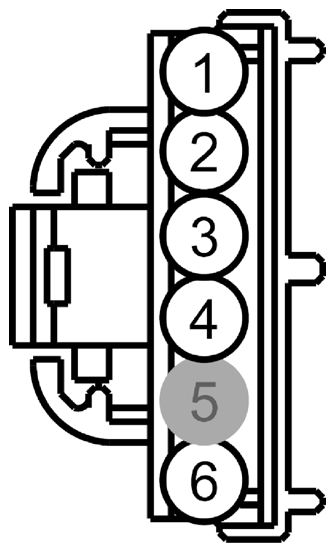

Passenger Door Window Control Switch Connector End View (C624)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | RPW05 (GN) | 26 | CTRL MOD. - POWER WINDOW SWITCH FRONT PASSENGER RETURN | |
| 2 | CPW20 (OG) | 26 | SWITCH - POWER WINDOW FRONT PASSENGER # UP | Fusion |
| 2 | CPW20 (WH-RD) | 26 | SWITCH - POWER WINDOW FRONT PASSENGER # UP | MKZ |
| 3 | CPW19 (VT-WH) | 26 | SWITCH - POWER WINDOW FRONT PASSENGER # DOWN | Fusion |
| 3 | CPW19 (VT) | 26 | SWITCH - POWER WINDOW FRONT PASSENGER # DOWN | MKZ |
| 4 | CPL78 (VT-WH) | 26 | CTRL MOD. - DOOR LOCK # SWITCH TRIM DOOR LOCK PASSENGER ILLUMINATION | MKZ |
| 4 | CPL78 (VT) | 26 | CTRL MOD. - DOOR LOCK # SWITCH TRIM DOOR LOCK PASSENGER ILLUMINATION | Fusion |
| 5 | * | * | Not Used | |
| 6 | RPW05 (BN) | 26 | CTRL MOD. - POWER WINDOW SWITCH FRONT PASSENGER RETURN | Fusion |
| 6 | RPW05 (GN-WH) | 26 | CTRL MOD. - POWER WINDOW SWITCH FRONT PASSENGER RETURN | MKZ |
| Available Pigtail Kits | |
|---|---|

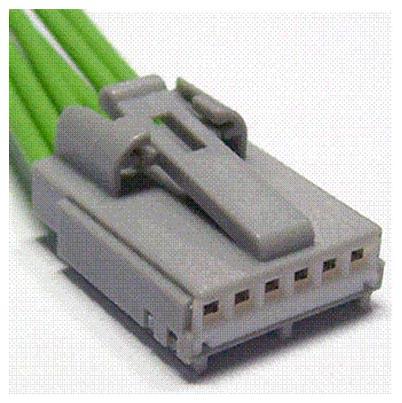

| Pigtail Kit Part Number WPT-1028 | Service Part Number: 9U2Z-14S411-APA Gauge: 18 Pin material: Silver Cavities: 6 Vehicle Uses
|
