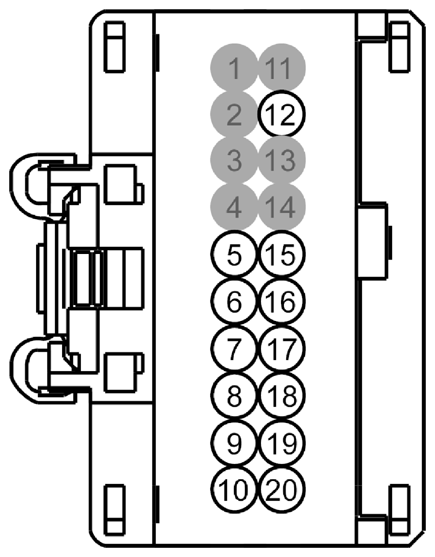

| 1 |
* |
* |
Not Used |
|
| 2 |
* |
* |
Not Used |
|
| 3 |
* |
* |
Not Used |
|
| 4 |
* |
* |
Not Used |
|
| 5 |
LPM12 (BU) |
26 |
CTRL MOD. - SENSORS MIRROR POSITION (RIGHT) + |
|
| 6 |
VPM37 (BU-OG) |
26 |
SENSOR - RIGHT MIRROR POSITION # HORIZONTAL |
|
| 7 |
CPM34 (WH-BN) |
22 |
CTRL MOD. - RIGHT MIRROR UP |
|
| 8 |
CPM33 (VT) |
26 |
CTRL MOD. - RIGHT MIRROR RIGHT |
Fusion |
| 8 |
CPM33 (WH) |
26 |
CTRL MOD. - RIGHT MIRROR RIGHT |
MKZ |
| 9 |
CPM40 (WH-OG) |
22 |
CTRL MOD. - RIGHT MIRROR FOLD OUT |
Korea |
| 10 |
CLN32 (YE) |
26 |
CTRL MOD. - PUDDLE LAMP RIGHT |
Fusion |
| 10 |
CLN32 (BN-YE) |
26 |
CTRL MOD. - PUDDLE LAMP RIGHT |
MKZ |
| 11 |
* |
* |
Not Used |
|
| 12 |
RPL62 (GY) |
22 |
CTRL MOD. - DOOR LOCK # SWITCH TRIM DOOR LOCK PASSENGER |
|
| 13 |
* |
* |
Not Used |
|
| 14 |
* |
* |
Not Used |
|
| 15 |
RRB07 (YE) |
26 |
CTRL MOD. - BLINDSPOT WARNING # LED MIRROR RIGHT OR PASSENGER - |
MKZ |
| 15 |
RRB07 (YE-BU) |
26 |
CTRL MOD. - BLINDSPOT WARNING # LED MIRROR RIGHT OR PASSENGER - |
Fusion |
| 16 |
VPM38 (BN-YE) |
26 |
SENSOR - RIGHT MIRROR POSITION # VERTICAL |
Fusion |
| 16 |
VPM38 (BN-WH) |
26 |
SENSOR - RIGHT MIRROR POSITION # VERTICAL |
MKZ |
| 17 |
RPM08 (GN-WH) |
26 |
CTRL MOD. - RIGHT MIRROR RETURN |
|
| 18 |
CPM07 (BN-WH) |
26 |
CTRL MOD. - RIGHT MIRROR FOLD IN |
Fusion |
| 18 |
CPM07 (BN) |
26 |
CTRL MOD. - RIGHT MIRROR FOLD IN |
MKZ |
| 19 |
CRB07 (BN) |
26 |
CTRL MOD. - BLINDSPOT WARNING # LED MIRROR RIGHT OR PASSENGER + |
|
| 20 |
CRD13 (GN) |
26 |
CTRL MOD. - HEATER MIRROR LEFT |
|
