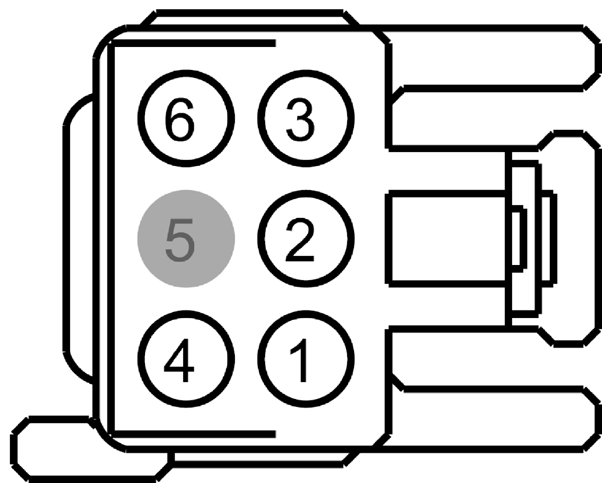

Interior Rear Door Handle Ambient Lighting Lamp LH Connector End View (C737)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | VLN73 (GY-BN) | 22 | CTRL MOD. - AMBIENT LIGHTING LIN BUS | MKZ |
| 2 | CPL69 (YE-VT) | 22 | SWITCH - LATCH REAR DRIVER SIDE # CHILD LOCK FEEDBACK | MKZ |
| 2 | CPL69 (VT) | 26 | SWITCH - LATCH REAR DRIVER SIDE # CHILD LOCK FEEDBACK | Fusion |
| 3 | CBX07 (GN-RD) | 22 | POWER - CTRL MOD. AMBIENT LIGHTING | MKZ |
| 4 | GD382 (BK-GY) | 22 | GROUND - CROSS MEMBER MIDDLE DRIVER OR LEFT | |
| 5 | * | * | Not Used | |
| 6 | CPL89 (BN) | 22 | CTRL MOD. - DOOR LOCK # LOCK STATUS INDICATOR REAR DRIVER | Fusion |
| 6 | CPL89 (BN-BU) | 22 | CTRL MOD. - DOOR LOCK # LOCK STATUS INDICATOR REAR DRIVER | MKZ |

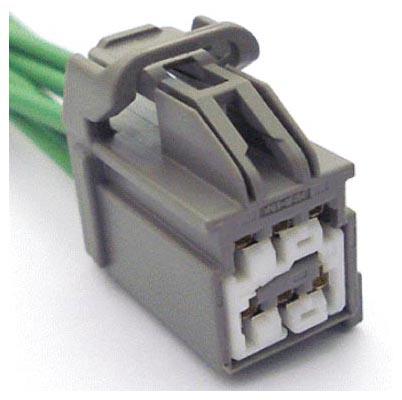

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-962 | Service Part Number: 3U2Z-14S411-JBB Gauge: 14 Pin material: Silver Cavities: 6 Vehicle Uses
|
