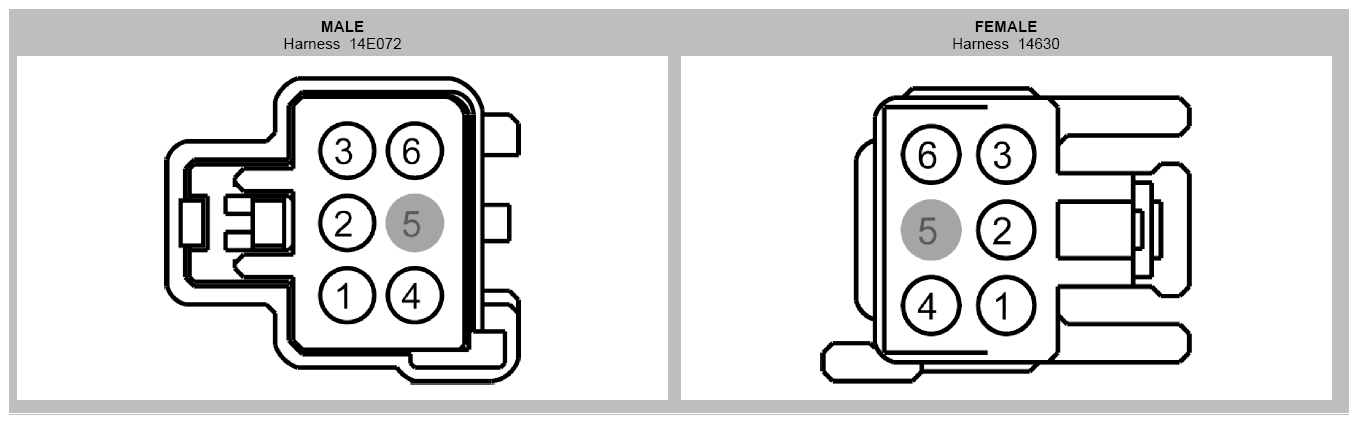

Inline Connector End View (C610)
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Qualifier |
| 1 |
VDN05 (YE-GY) |
22 |
14E072 |
| 1 |
VLN73 (GY-BN) |
22 |
14630 |
| 2 |
CPL35 (BU) |
22 |
|
| 3 |
CB0X7 (GN-RD) |
22 |
14E072 |
| 3 |
CBX07 (GN) |
22 |
14630 - Fusion |
| 3 |
CBX07 (GN-RD) |
22 |
14630 - MKZ |
| 4 |
GD383 (BK-WH) |
22 |
|
| 5 |
* |
* |
|
| 6 |
CPL88 (VT) |
22 |
14E072 |
| 6 |
CPL88 (VT) |
26 |
14630 |
