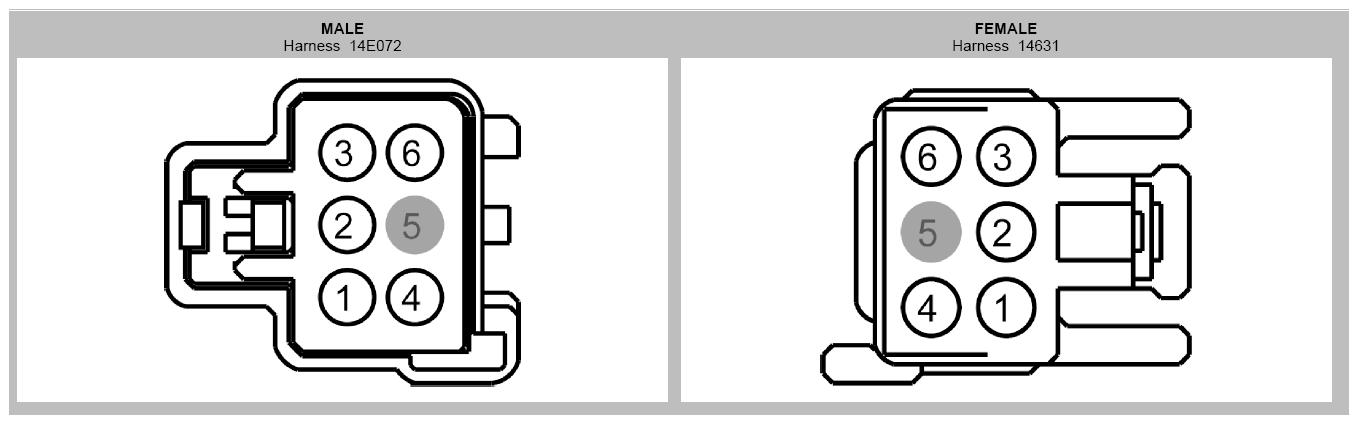

Inline Connector End View (C510)
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Qualifier |
| 1 |
VDN05 (YE-GY) |
22 |
14E072 |
| 1 |
VLN73 (GY-BN) |
22 |
14631 |
| 2 |
CPL30 (BU-BN) |
2 |
|
| 3 |
CB0X7 (GN-RD) |
22 |
14E072 |
| 3 |
CBX07 (GN) |
22 |
14631 - Fusion |
| 3 |
CBX07 (GN-RD) |
22 |
14631 - MKZ |
| 4 |
GD382 (BK-GY) |
22 |
|
| 5 |
* |
* |
|
| 6 |
CPL87 (BN) |
22 |
14E072 |
| 6 |
CPL87 (BN) |
26 |
14631 - MKZ |
| 6 |
CPL87 (BN-WH) |
26 |
14631 - Fusion |
