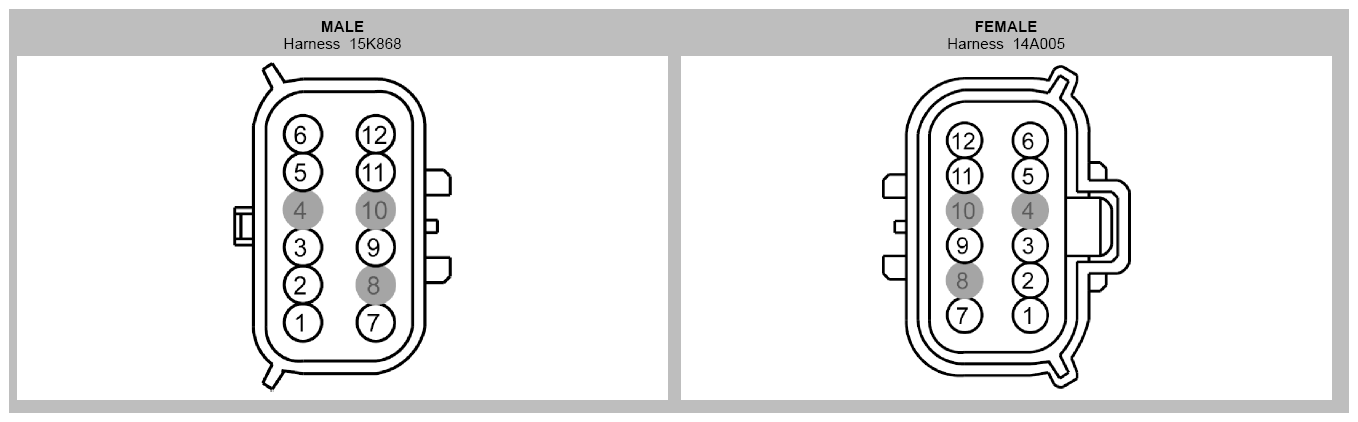

Inline Connector End View (C405)
| Pin | Circuit | Gauge | Qualifier |
|---|---|---|---|
| 1 | RMP07 (GN-WH) | 22 | |
| 2 | CPL60 (BN-YE) | 22 | |
| 3 | LMP07 (BU-WH) | 22 | |
| 4 | * | * | |
| 5 | VMP16 (YE-GY) | 18 | 15K868 |
| 5 | VMP16 (YE-GY) | 22 | |
| 6 | VMP14 (WH-OG) | 18 | 15K868 |
| 6 | VMP14 (WH-OG) | 22 | |
| 7 | GD347 (BK-VT) | 22 | |
| 8 | * | * | |
| 9 | CLS05 (BU-GY) | 22 | |
| 10 | * | * | |
| 11 | VMP17 (YE-OG) | 18 | 15K868 |
| 11 | VMP17 (YE-OG) | 22 | |
| 12 | VMP15 (YE-GN) | 18 | 15K868 |
| 12 | VMP15 (YE-GN) | 22 |
