Inline Connector End View (C300)

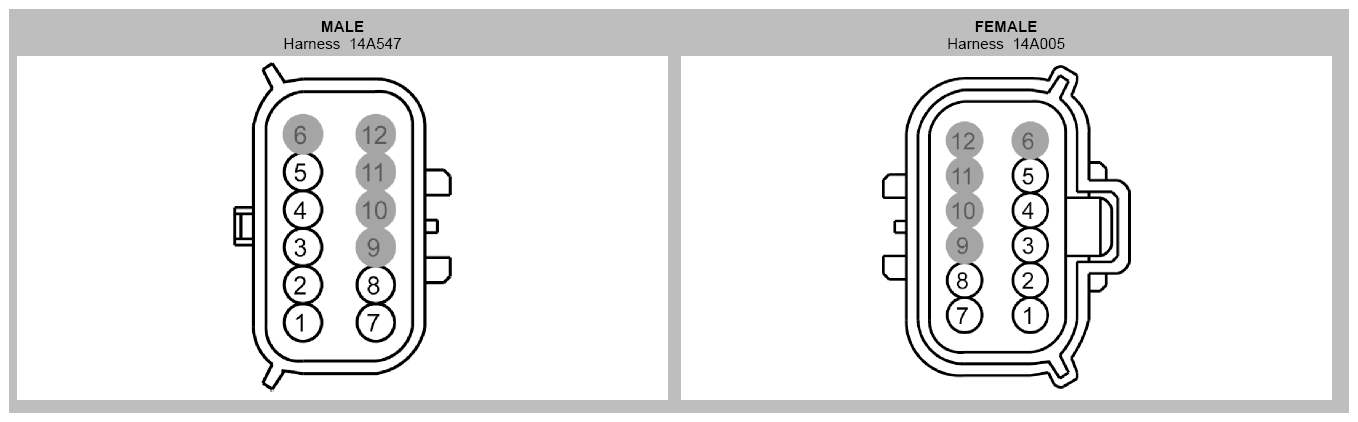

Fig 1: Identifying Inline Connector (C300)
G09266169Courtesy of FORD MOTOR CO.
Pin Circuit Gauge Qualifier
1 CR180 (YE) 20
2 RR180 (BN-GN) 20
3 CR181 (WH) 20
4 RR181 (BU-OG) 20
5 CR204 (VT) 20
6 * *
7 CR206 (BN) 20
8 RR137 (BU-GY) 20
9 * *
10 * *
11 * *
12 * *
