Heated Rear Window Element Connector End View (C402B)

Fig 1: Identifying Heated Rear Window Element Connector (C402B)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD313 (BK-GN)	10	GROUND - PILLAR C OR QUARTER PANEL RIGHT # 2ND POINT

Available Pigtail Kits

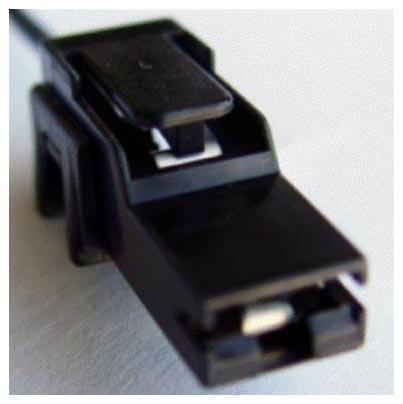

Pigtail Kit Part Number WPT-371	Service Part Number: 3U2Z-14S411-KBA  Gauge: 10  Pin material: Tin  Cavities: 1  Vehicle Uses Cigar Lighter Horn Lamp - CHMSL (Center High Mount Stop Lamp) Module - Isolater Antenna Module - Radio Power Antenna Relay - Starter Motor Switch - Park Brake Terminal - Rear Window Defroster Grid

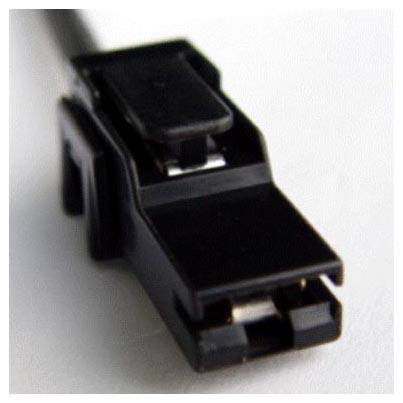

Pigtail Kit Part Number WPT-434	Service Part Number: 3U2Z-14S411-MFA  Gauge: 16 18  Pin material: Tin  Cavities: 1  Vehicle Uses Lamp - Map
