Front Door Lock Switch LH Connector End View (C505)

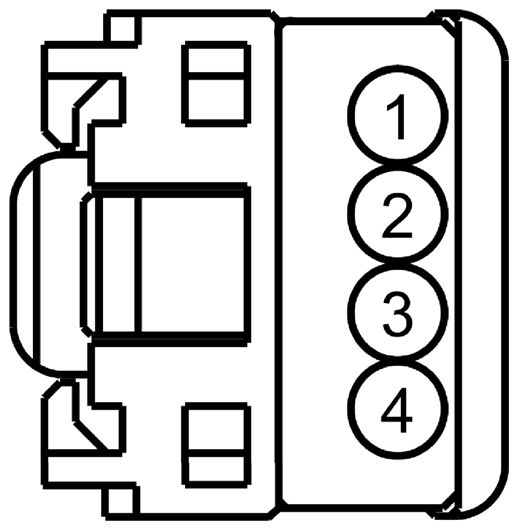

Fig 1: Identifying Front Door Lock Switch LH Connector (C505)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPL42 (GY)	26	SWITCH - TRIM DOOR LOCK (DRIVER) # LOCK
2	RPW03 (GN)	26	CTRL MOD. - POWER WINDOW SWITCH DRIVER RETURN
3	CPL43 (VT)	26	SWITCH - TRIM DOOR LOCK (DRIVER) # UNLOCK
4	CPL77 (BU)	26	CTRL MOD. - DOOR LOCK # SWITCH TRIM DOOR LOCK DRIVER ILLUMINATION

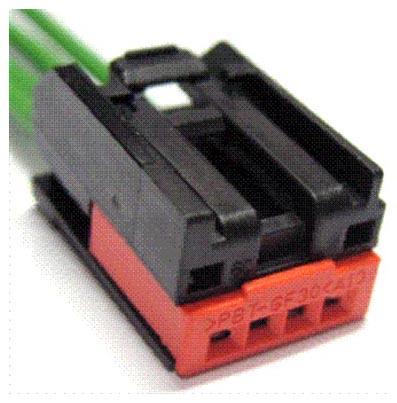

Available Pigtail Kits

Pigtail Kit Part Number WPT-1139
