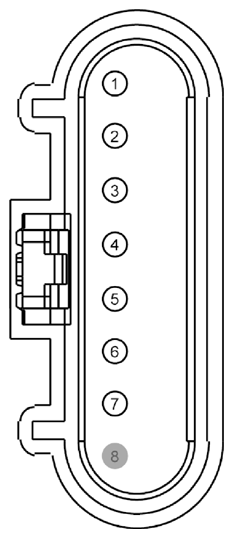

Front Door Latch Release Motor LH Connector End View (C525)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CPL29 (YE-GY) | 22 | SWITCH - LATCH DRIVER # SET | |
| 2 | CPL28 (VT-BN) | 22 | SWITCH - LATCH DRIVER # RESET | |
| 3 | CPL26 (GN) | 22 | SWITCH - LATCH DRIVER # AJAR | Fusion |
| 3 | CPL26 (GN-VT) | 22 | SWITCH - LATCH DRIVER # AJAR | MKZ |
| 4 | CPL30 (BU-BN) | 22 | SWITCH - LATCH DRIVER # UNLOCK | |
| 5 | RPL61 (BN-GN) | 22 | CTRL MOD. - DOOR LOCK # SWITCH TRIM DOOR LOCK DRIVER | |
| 6 | CPL51 (BU-GN) | 14 | CTRL MOD. - DOOR LOCK # DRIVER UNLOCK | |
| 7 | CPL11 (GY-BN) | 14 | CTRL MOD. - DOOR LOCK # ALL LOCK | |
| 8 | * | * | Not Used |
| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1366 | Service Part Number: 3U2Z-14S411-MBB Gauge: 16 Pin material: Silver Cavities: 8 Vehicle Uses
|
