Exterior Mirror Blind Spot (BLIS)/Cross Traffic Alert (CTA) Led, Left Connector End View (C576)

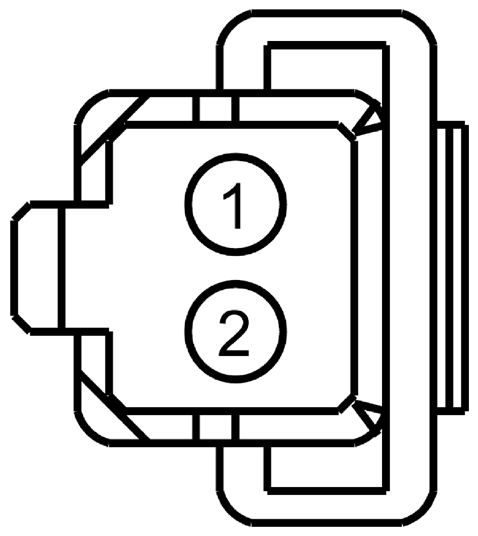

Fig 1: Identifying Exterior Mirror Blind Spot/Cross Traffic Alert LED - Left Connector (C576)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	* (*)	*	SENSOR - ALERT
2	* (*)	*	GROUND - COWL SIDE/PILLAR A LEFT

Available Pigtail Kits

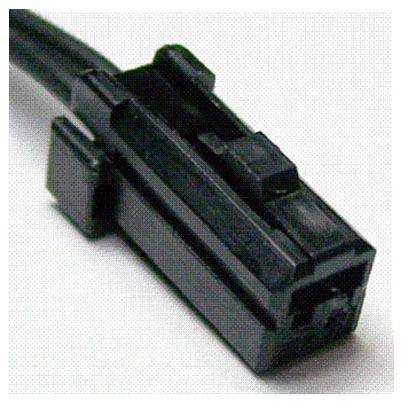

Pigtail Kit Part Number WPT-1197	Service Part Number: 3U2Z-14S411-PFB  Gauge: 20  Pin material: Tin (greased)  Cavities: 2  Vehicle Uses Mirror - Vanity Sensor - Speed Switch - Brake Deactivation Switch - Brake Pedal Position Switch - Brake Pressure Switch - Park Brake Switch - Speed Control Switch - Speed Control Deactivation Switch - Stop Lamp Switch - Visor

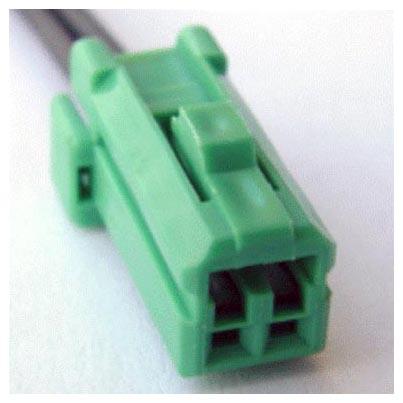

Pigtail Kit Part Number WPT-479	Service Part Number: 3U2Z-14S411-PFA  Gauge: 20  Pin material: Tin  Cavities: 2  Vehicle Uses Mirror - Vanity Switch - Brake Pedal Position Switch - Brake Pressure Switch - Park Brake Switch - Speed Control Switch - Speed Control Deactivation Switch - Stop Lamp Switch - Visor
