Exterior Door Handle, Right Rear Connector End View (C831)

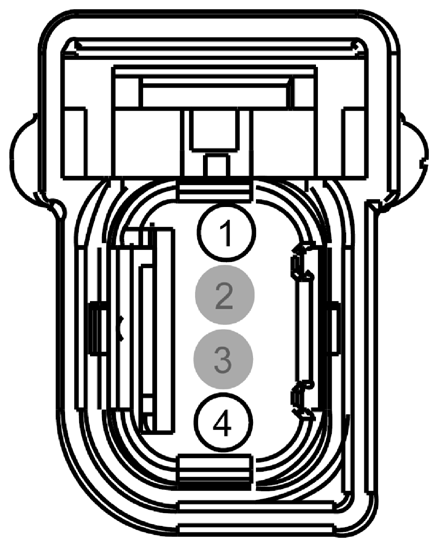

Fig 1: Identifying Exterior Door Handle - Right Rear Connector (C831)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VPK47 (VT)	22	SENSOR - KEYLESS VEHICLE HANDLE REAR PASSENGER SIDE POWER/DATA	MKZ
2	*	*	Not Used
3	*	*	Not Used
4	RPK39 (VT-OG)	22	SENSOR - KEYLESS VEHICLE HANDLE	MKZ
