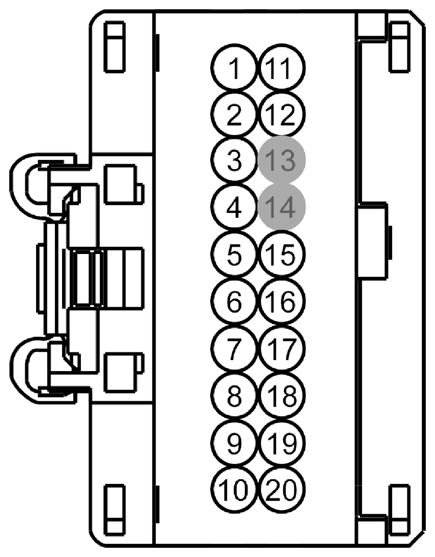

| 1 |
CPS15 (WH) |
26 |
SWITCH - MEMORY DRIVER P1 |
Fusion |
| 1 |
CPS15 (VT-WH) |
26 |
SWITCH - MEMORY DRIVER P1 |
MKZ |
| 2 |
CPS17 (OG) |
26 |
SWITCH - MEMORY DRIVER P3 |
Fusion |
| 2 |
CPS17 (BU-OG) |
26 |
SWITCH - MEMORY DRIVER P3 |
MKZ |
| 3 |
CPS16 (YE) |
26 |
SWITCH - MEMORY DRIVER P2 |
|
| 4 |
CPL28 (VT-BN) |
22 |
SWITCH - LATCH DRIVER # RESET |
|
| 5 |
LPM30 (GY-BN) |
26 |
CTRL MOD. - SENSORS MIRROR POSITION (LEFT) + |
|
| 6 |
VPM35 (YE-BU) |
26 |
SENSOR - LEFT MIRROR POSITION # HORIZONTAL |
|
| 7 |
CPM29 (GN) |
22 |
CTRL MOD. - LEFT MIRROR UP |
|
| 8 |
CPM28 (BU) |
26 |
CTRL MOD. - LEFT MIRROR RIGHT |
|
| 9 |
CPM39 (GN-VT) |
22 |
CTRL MOD. - LEFT MIRROR FOLD OUT |
Korea |
| 10 |
CLN31 (VT) |
26 |
CTRL MOD. - PUDDLE LAMP LEFT |
|
| 11 |
CPL29 (YE-GY) |
22 |
SWITCH - LATCH DRIVER # SET |
|
| 12 |
RPL61 (BN-GN) |
22 |
CTRL MOD. - DOOR LOCK # SWITCH TRIM DOOR LOCK DRIVER |
|
| 13 |
* |
* |
Not Used |
|
| 14 |
* |
* |
Not Used |
|
| 15 |
RRB06 (GY) |
26 |
CTRL MOD. - BLINDSPOT WARNING # LED MIRROR LEFT OR DRIVER - |
|
| 16 |
VPM36 (BN-YE) |
26 |
SENSOR - LEFT MIRROR POSITION # VERTICAL |
|
| 17 |
RPM05 (GN) |
26 |
CTRL MOD. - LEFT MIRROR RETURN |
MKZ |
| 17 |
RPM05 (VT-WH) |
26 |
CTRL MOD. - LEFT MIRROR RETURN |
Fusion |
| 18 |
CPM04 (BN) |
26 |
CTRL MOD. - LEFT MIRROR FOLD IN |
Fusion |
| 18 |
CPM04 (BU-WH) |
26 |
CTRL MOD. - LEFT MIRROR FOLD IN |
MKZ |
| 19 |
CRB06 (GN-WH) |
26 |
CTRL MOD. - BLINDSPOT WARNING # LED MIRROR LEFT OR DRIVER + |
MKZ |
| 19 |
CRB06 (WH) |
26 |
CTRL MOD. - BLINDSPOT WARNING # LED MIRROR LEFT OR DRIVER + |
Fusion |
| 20 |
CRD13 (GN) |
26 |
CTRL MOD. - HEATER MIRROR LEFT |
Fusion |
| 20 |
CRD13 (OG-WH) |
26 |
CTRL MOD. - HEATER MIRROR LEFT |
MKZ |
