Steering Column Multifunction Switch LH: Removal

  1. WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION . Failure to follow this instruction may result in serious personal injury.

    Refer to: HEALTH AND SAFETY PRECAUTIONS .

  2. Refer to: STEERING COLUMN SHROUDS .

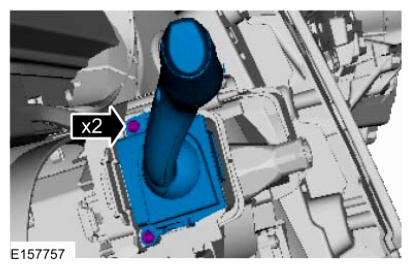

  3. NOTE: The steering wheel is removed for clarity.
    NOTE: Make sure the component terminals are not bent or damaged.
    G08632146
