Steering Column Control Module (SCCM): Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION . Failure to follow this instruction may result in serious personal injury.
Refer to: HEALTH AND SAFETY PRECAUTIONS .
- If installing a new SCCM, connect the diagnostic scan tool and upload the module configuration information from the SCCM.
- Refer to: STEERING WHEEL .
- Refer to: STEERING COLUMN SHROUDS .

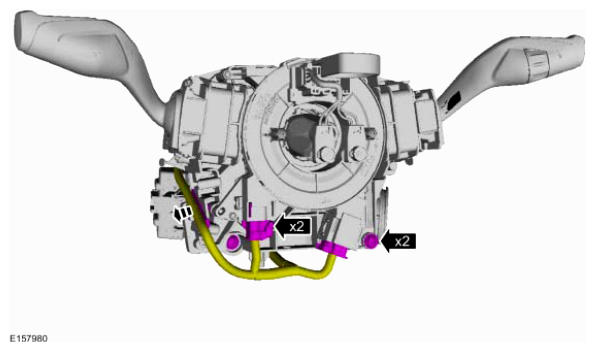

- Torque:
27 lb.in (3 Nm)

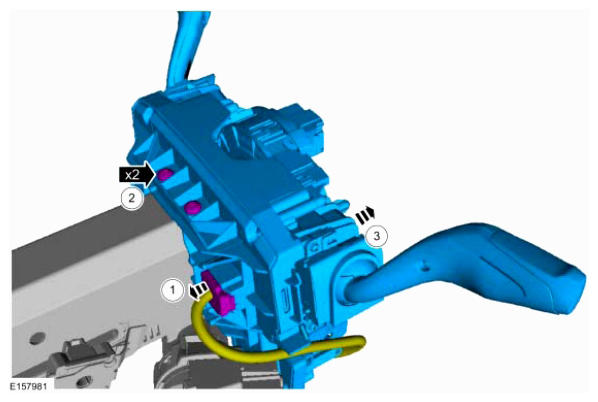

- Torque:
27 lb.in (3 Nm)
