Ignition Switch - Vehicles With: Push Button Start: Removal

  1. Vehicles with touchscreen display.

    Vehicles With: SYNC/Touchscreen Display/AM/FM/CD Refer to: FRONT CONTROLS INTERFACE MODULE (FCIM) .

    Vehicles With: Sony Audio System/SYNC/AM/FM/CD Refer to: FRONT CONTROLS INTERFACE MODULE (FCIM) .

  2. Vehicles with touchscreen display.

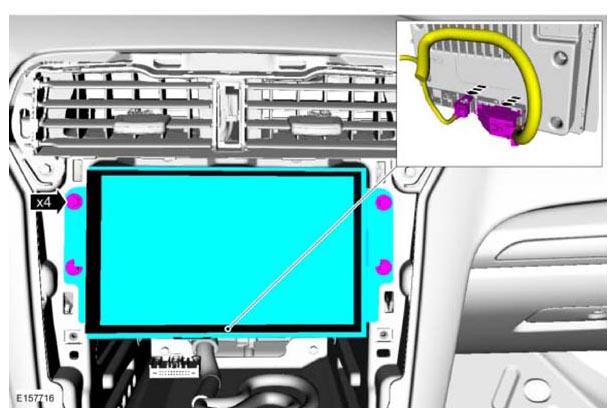

    G08634611
  3. Vehicles without touchscreen display.

    Refer to: FRONT CONTROL/DISPLAY INTERFACE MODULE (FCDIM) .

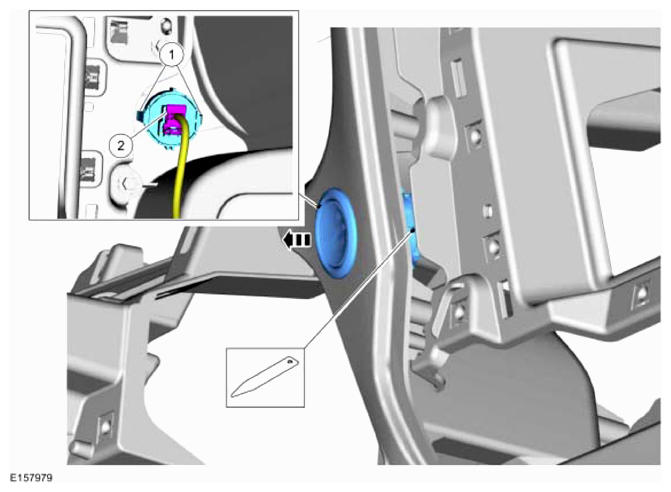

  4. G09060008
