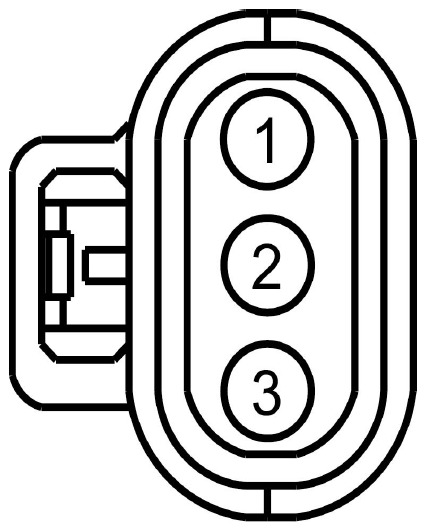

Crankshaft Position (CKP) Sensor Connector End View (C1120)
WARNING: This page is about a different car, the 2013 Lincoln MKZ and 2013 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | LE423 (GN) | 20 | REFERENCE VOLTAGE (VREF) | |
| 2 | RE405 (GN-WH) | 20 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (E-SIGRTN) (SIGRTN-A) | |
| 3 | VE711 (YE-VT) | 20 | SENSOR - CRANKSHAFT POSITION (CKPP) + |

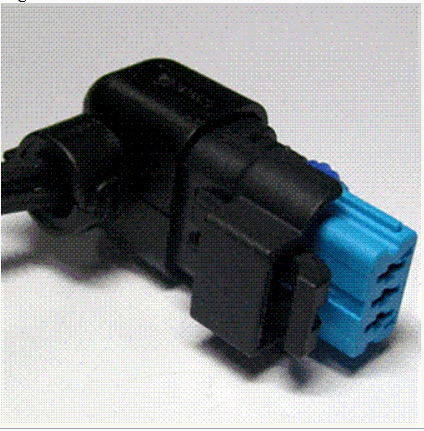

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1345 | Service Part Number: DU2Z-14S411-LA Gauge: 18 Pin material: Tin (greased) Cavities: 3 Vehicle Uses
|
