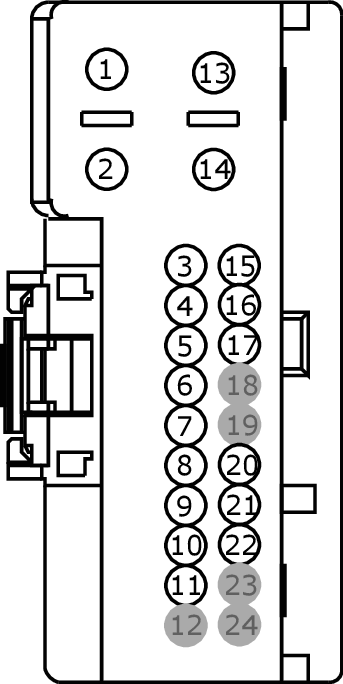

Connector End View (C652A) - PASSENGER DOOR MODULE (PDM)
WARNING: This page is about a different car, the 2017 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C652A
Description
PASSENGER DOOR MODULE (PDM)
Color
Harness
14630
Base Part #
#N/A
Service Pigtail
Not Available
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | SBP26 (YE-RD) | 10 | FUSE - 26 OR CIRCUIT BREAKER | |
| 2 | GD383 (BK-WH) | 10 | GROUND - CROSS MEMBER MIDDLE PASSENGER OR RIGHT | |
| 3 | CPL88 (VT) | 26 | CTRL MOD. - DOOR LOCK # LOCK STATUS INDICATOR PASSENGER | |
| 4 | CLS26 (BU-WH) | 26 | CTRL MOD. - TURN LAMP RIGHT MIRROR + | |
| 4 | CLS26 (GY) | 22 | CTRL MOD. - TURN LAMP RIGHT MIRROR + | |
| 4 | CLS26 (BU) | 22 | CTRL MOD. - TURN LAMP RIGHT MIRROR + | |
| 5 | VDN10 (BN-VT) | 22 | CTRL MOD. - LIN BUS # PASSENGER OR RIGHT HAND DOOR MODULE [OBSOLETE - REPLACED BY VPLA6] | |
| 5 | VDN10 (BN) | 22 | CTRL MOD. - LIN BUS # PASSENGER OR RIGHT HAND DOOR MODULE [OBSOLETE - REPLACED BY VPLA6] | Ford |
| 6 | VDB07 (VT-OG) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW | |
| 6 | VDB07 (VT) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW | Ford |
| 7 | VDB06 (GY) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH | Ford |
| 7 | VDB06 (GY-OG) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH | |
| 8 | CPW20 (WH-RD) | 26 | SWITCH - POWER WINDOW FRONT PASSENGER # UP | Lincoln |
| 8 | CPW20 (OG) | 26 | SWITCH - POWER WINDOW FRONT PASSENGER # UP | |
| 9 | CPW19 (VT) | 26 | SWITCH - POWER WINDOW FRONT PASSENGER # DOWN | Lincoln |
| 9 | CPW19 (VT-WH) | 26 | SWITCH - POWER WINDOW FRONT PASSENGER # DOWN | |
| 10 | CPL16 (YE) | 26 | SWITCH - TRIM DOOR LOCK PASSENGER # UNLOCK | |
| 10 | CPL16 (YE-GN) | 26 | SWITCH - TRIM DOOR LOCK PASSENGER # UNLOCK | Lincoln |
| 11 | VPW45 (GN-WH) | 22 | CTRL MOD. - WINDOW MOTOR PASSENGER # HALL EFFECT SENSOR 2 (UP IF LEAD) | |
| 12 | * | * | Not Used | |
| 13 | CPW41 (GY-YE) | 12 | CTRL MOD. - WINDOW MOTOR FRONT PASSENGER # DOWN (IF POSITIVE) | |
| 14 | CPW40 (WH) | 12 | CTRL MOD. - WINDOW MOTOR FRONT PASSENGER # UP (IF POSITIVE) | |
| 15 | CPL78 (VT-WH) | 26 | CTRL MOD. - DOOR LOCK # SWITCH TRIM DOOR LOCK PASSENGER ILLUMINATION | Lincoln |
| 15 | CPL78 (WH) | 26 | CTRL MOD. - DOOR LOCK # SWITCH TRIM DOOR LOCK PASSENGER ILLUMINATION | |
| 16 | LPW42 (VT-GY) | 22 | CTRL MOD. - WINDOW MOTOR PASSENGER # SENSORS | |
| 17 | RPW05 (GN-BN) | 22 | CTRL MOD. - POWER WINDOW SWITCH FRONT PASSENGER RETURN | |
| 18 | * | * | Not Used | |
| 19 | * | * | Not Used | |
| 20 | CPL15 (BU) | 26 | SWITCH - TRIM DOOR LOCK PASSENGER # LOCK | |
| 21 | VPW44 (BU-OG) | 22 | CTRL MOD. - WINDOW MOTOR PASSENGER # HALL EFFECT SENSOR 1 (DOWN IF LEAD) | |
| 22 | RPW43 (YE-GN) | 22 | CTRL MOD. - WINDOW MOTOR PASSENGER # SENSORS | |
| 23 | * | * | Not Used | |
| 24 | * | * | Not Used |
