Connector End View (C610) - INLINE
WARNING: This page is about a different car, the 2017 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Inline: C610
Description
INLINE
Color
Base Part #
Service Pigtail
See Below
MALE
Harness 14E072
FEMALE
Harness 14630
| Pin | Circuit | Gauge | Qualifier |
| 1 | VDN05 (YE-GY) | 22 | 14E072 |
| 1 | VLN73 (GY-BN) | 22 | 14630 |
| 2 | CPL35 (BU) | 22 | 14E072 |
| 2 | CPL35 (BU) | 22 | 14630 |
| 3 | CB0X7 (GN) | 22 | 14E072 - Lincoln, China |
| 3 | CB0X7 (GN-RD) | 22 | 14E072 |
| 3 | CBX07 (GN) | 22 | 14630 |
| 3 | CBX07 (GN-RD) | 22 | 14630 |
| 4 | GD383 (BK-WH) | 22 | |
| 5 | * | * | |
| 6 | CPL88 (VT) | 22 | 14E072 |
| 6 | CPL88 (VT) | 26 | 14630 |

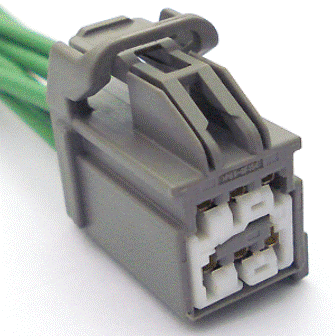

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-962 |
Service Part Number: 3U2Z- 14S411-JBB Gauge: 14 Pin material: Silver Cavities: 6 Vehicle Uses: Mating Connector WPT-1299 Switch - Gear Shift Select/Neutral Safety Switch - Overdrive Cancel Switch - Power Sliding Door |
