Timing Drive Components: Installation

WARNING: This page is about a different car, the 2016 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

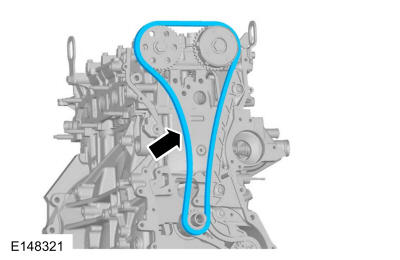

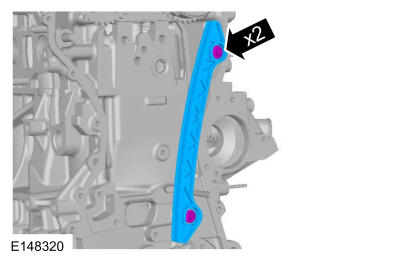

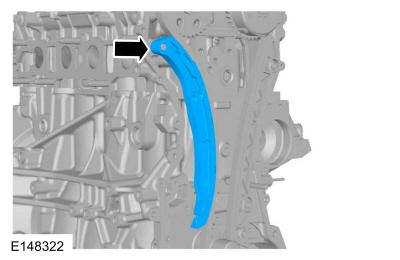

1.

Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

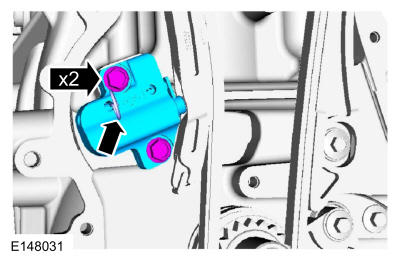

NOTE: If the timing chain plunger and ratchet assembly are not pinned in the compressed position, follow the next 4 steps.

4.

NOTE: Do not compress the ratchet assembly. This will damage the ratchet assembly.

Using the edge of a vise, compress the timing chain tensioner plunger.

Courtesy of FORD MOTOR COMPANY

5.

Using a small pick, push back and hold the ratchet mechanism.

Courtesy of FORD MOTOR COMPANY

6.

While holding the ratchet mechanism, push the ratchet arm back into the tensioner housing.

Courtesy of FORD MOTOR COMPANY

7.

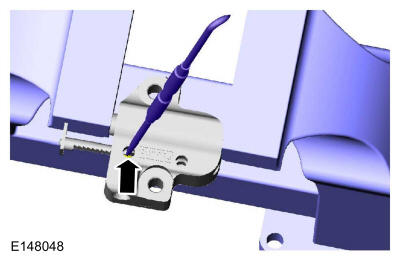

Install a holding pin into the hole in the tensioner housing to hold the ratchet assembly and the plunger in during installation.

Courtesy of FORD MOTOR COMPANY

8.

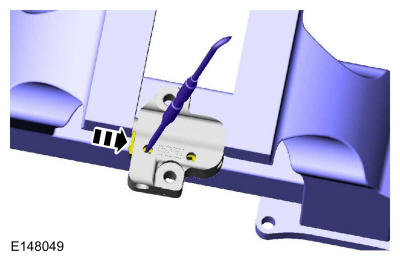

Remove the holding pin to release the piston.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

9.

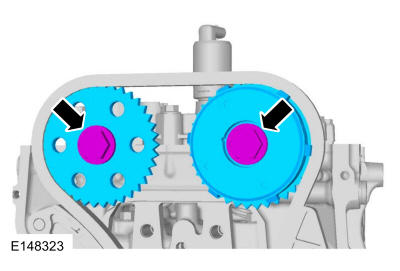

NOTE: The Camshaft Alignment Plate is for camshaft alignment only. Using this tool to prevent engine rotation can result in engine damage.

NOTE: Use the flats on the camshafts to prevent camshaft rotation.

Torque:

Stage 1: 30 lb.ft (40 Nm)

Stage 2: 60 °

Courtesy of FORD MOTOR COMPANY

10.

Refer to: Engine Front Cover - Hybrid Electric Vehicle (HEV) .
