Valve Clearance Check
WARNING: This page is about a different car, the 2016 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Special Tool(s) / General Equipment
| Feeler Gauge |
|---|
Check
- 1.
Remove the following items:- Refer to: Valve Cover .
- RH only. Refer to: Fender Splash Shield .
- 2.NOTE: Turn the engine clockwise only, and only use the crankshaft bolt.NOTE: Measure the clearance of each valve at base circle, with the lobe pointed away from the tappet.

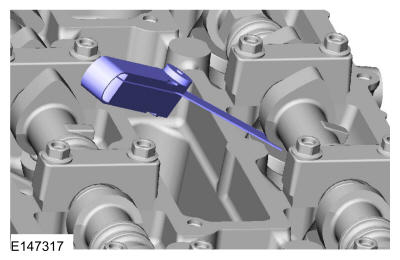

Use a feeler gauge to measure the clearance of each valve and record its location. Use the General Equipment: Feeler Gauge
- 3.NOTE: The number on the valve tappet only reflects the digits that follow the decimal. For example, a tappet with the number 0.650 has the thickness of 3.650 mm.NOTE: Select tappets using this formula: tappet thickness = measured clearance + the existing tappet thickness - nominal clearance.NOTE: The nominal clearance is:
- intake: 0.0098 in (.25 mm)
- exhaust: 0.0142 in (.36 mm)
NOTE: The acceptable clearances after being fully installed are:- intake: 0.0079-0.0118 in (.2-.3 mm)
- exhaust: 0.0122-0.0161 in (.31-.41 mm)
Select the closest tappet size to the ideal tappet thickness available and mark the installation location.
- 4.
If any tappets do not measure within specifications, install new tappets in these locations. Refer to: Valve Tappets .
