Disassembly And Assembly Of Subassemblies: Piston: Assembly

WARNING: This page is about a different car, the 2016 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

1.

NOTE: Align the piston-to-connecting rod orientation marks made during disassembly.

Courtesy of FORD MOTOR COMPANY

2.

Gradually heat the pin bore side of the connecting rod to approximately 250 °C-300 °C (482 °F-572 °F) and immediately install the piston pin.

Courtesy of FORD MOTOR COMPANY

3.

Material: Motorcraft ® SAE 0W-20 Synthetic Blend Motor Oil / XO-0W20-QSP (WSS-M2C947-A)

Courtesy of FORD MOTOR COMPANY

4.

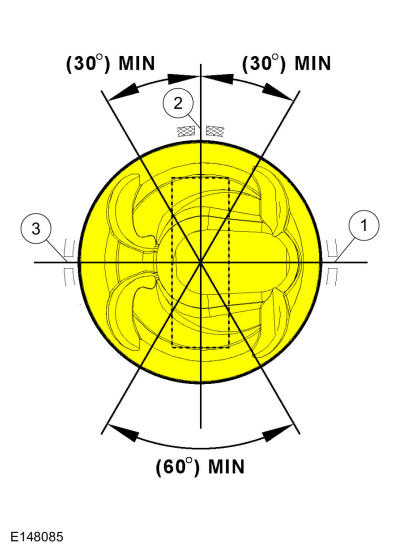

NOTE: Align the piston rings on the piston.
- 1.

  Upper oil control segment ring gap location.
- 2.

  Oil control spacer gap location.
- 3.

  Lower oil control segment ring gap location.

Courtesy of FORD MOTOR COMPANY
