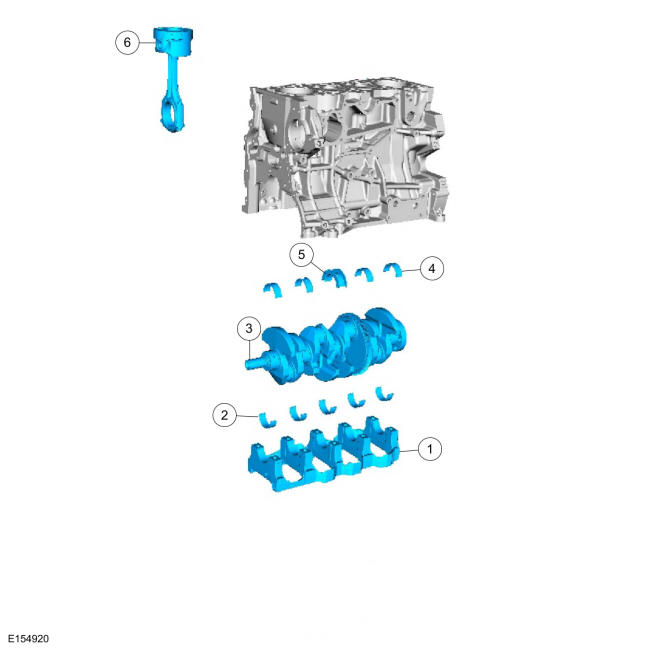

Exploded View Of Lower Engine Block (View 2)
WARNING: This page is about a different car, the 2016 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Part Number |
Description |
| 1 |
- |
Main bearing beam (part of 6010) |
| 2 |
6A338 |
Crankshaft main bearing beam bearing (5 required) |
| 3 |
6300 |
Crankshaft assembly |
| 4 |
6333 |
Cylinder block crankshaft main bearing (4 required) |
| 5 |
6337 |
Cylinder block crankshaft main thrust bearing |
| 6 |
6110 |
Piston (4 required) |
