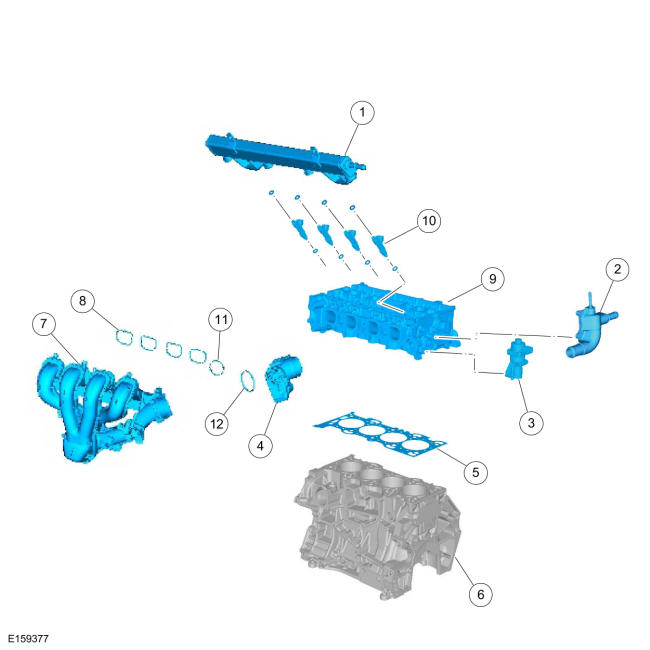

Exploded View Of Intake Manifold
WARNING: This page is about a different car, the 2016 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 9H487 | Fuel rail |
| 2 | 8K556 | Coolant outlet |
| 3 | 9D475 | Exhaust Gas Recirculation (EGR) valve |
| 4 | 9F991 | Electronic throttle body |
| 5 | 6051 | Cylinder head gasket |
| 6 | 6010 | Cylinder block |
| 7 | 9424 | Intake manifold |
| 8 | 9441 | Intake manifold gasket |
| 9 | 6049 | Cylinder head |
| 10 | 9F593 | Fuel injector (4 required) |
| 11 | 9J469 | Exhaust Gas Recirculation (EGR) gasket |
| 12 | 9E936 | Electronic throttle body gasket |
