Removal And Installation: Turbocharger: Installation

NOTE: Make sure that the mating faces are clean and free of foreign material.

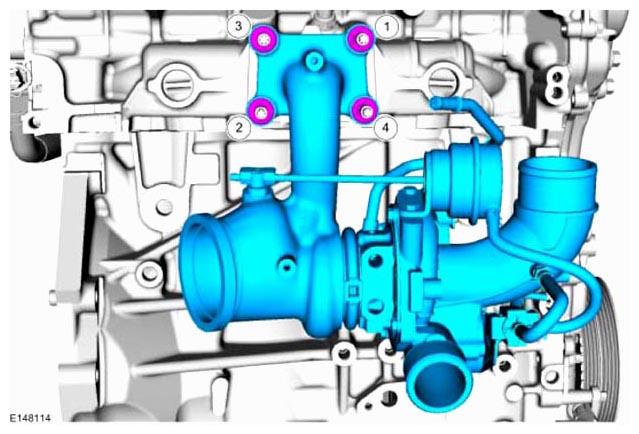

  1. NOTE: Make sure that 4 new turbocharger-to-cylinder head studs, 4 new turbocharger nuts and a new turbocharger gasket are installed.

    Torque: 37 lb.ft (50 Nm)

    G09645525
  2. To install, reverse the removal procedure.
