Steering Wheel Switch, LH Upper Connector End View (C2998)

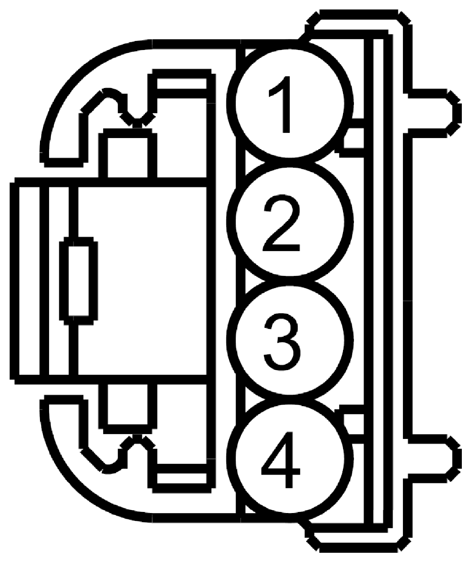

Fig 1: Identifying Steering Wheel Switch - LH Upper Connector (C2998)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RRH02 (*)	*	ILLUMINATION GROUND
2	LX105 (*)	*	SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 1
3	RX101 (*)	*	SWITCH - STEERING WHEEL CONTROLS # RETURN LEFT (SW GND LEFT)
4	VLN04 (*)	*	ILLUMINATION FEED

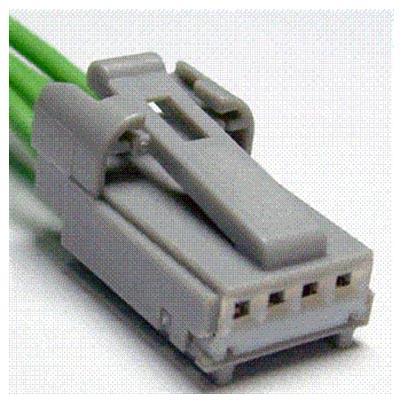

Available Pigtail Kits
Pigtail Kit Part Number WPT-1013	Service Part Number: 9U2Z-14S411-TA  Gauge: 18  Pin material: Silver  Cavities: 4  Vehicle Uses Module - Auto Lamps Sensor - Sunload
