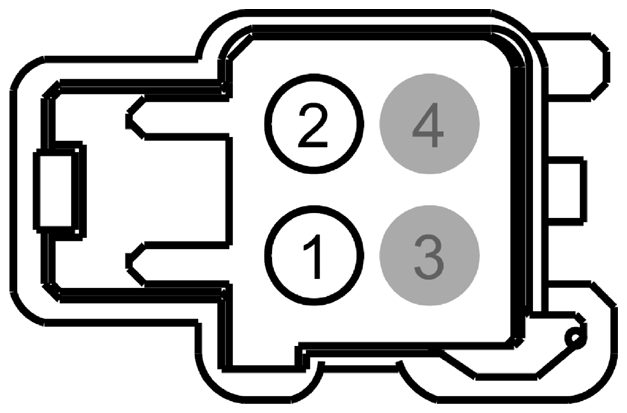

Seat Cushion Heater Mat, Right Rear Connector End View (C3169)

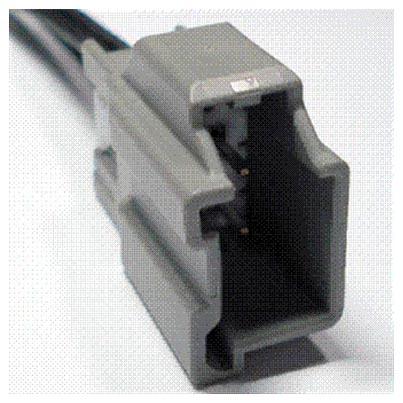

Fig 1: Identifying Seat Cushion Heater Mat - Right Rear Connector (C3169)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CHS74 (WH-OG)	20	HEATER - SEAT REAR LEFT CUSHION/BACK
2	GD382 (BK-GY)	20	GROUND - CROSS MEMBER MIDDLE DRIVER OR LEFT
3	*	*	Not Used
4	*	*	Not Used

Available Pigtail Kits
Pigtail Kit Part Number WPT-1076	Service Part Number: 3U2Z-14S411-BUB  Gauge: 14  Pin material: Tin (greased)  Cavities: 4  Vehicle Uses Connector - Inline Element - Heated Seat Lamp - Ash Tray Lamp - Courtesy - Footwell Module - Remote Keyless Entry Motor - Heater/AC Blower (Auxiliary) Radio - Amplifier Switch - Convertable Top
