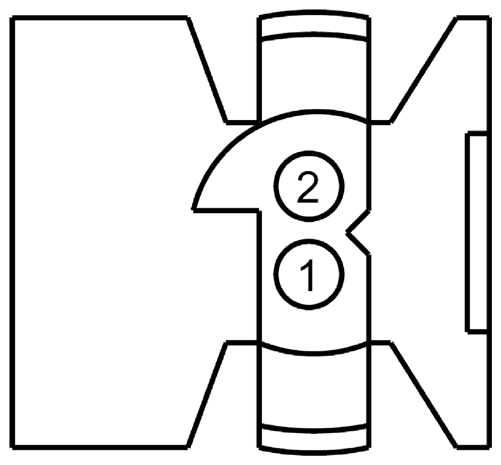

Safety Belt Anchor PRETENSIONER, Passenger Connector End View (C3066)

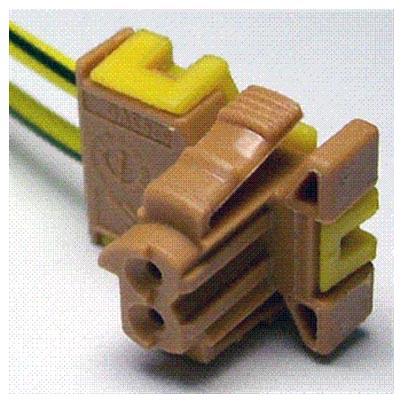

Fig 1: Identifying Safety Belt Anchor Pretensioner - Passenger Connector (C3066)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CR122 (WH-OG)	20	CTRL MOD. - SEAT BELT PRETENSIONER FRONT PASSENGER OUTBOARD +
2	RR122 (BN)	20	CTRL MOD. - SEAT BELT PRETENSIONER FRONT PASSENGER OUTBOARD -

Available Pigtail Kits
Pigtail Kit Part Number WPT-1222	Service Part Number: BU2Z-14S411-BEA  Gauge: 20  Pin material: FCI - Airbag  Cavities: 2  Vehicle Uses Pretensioner - Seat Belt (Driver) Squib - Airbag (Passenger)
