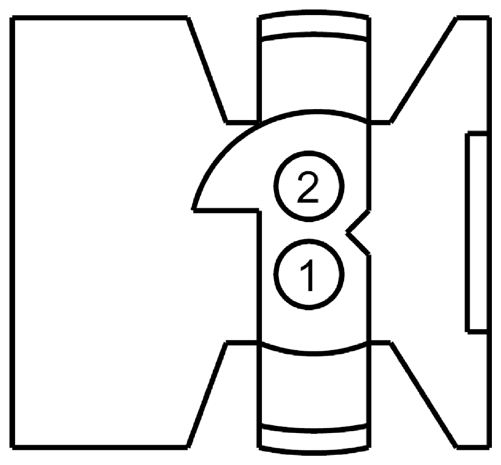

Safety Belt Anchor PRETENSIONER, Driver Connector End View (C3065)

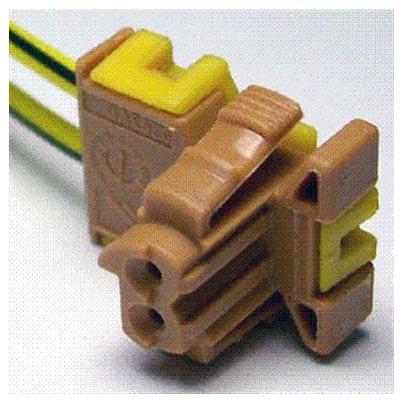

Fig 1: Identifying Safety Belt Anchor Pretensioner - Driver Connector (C3065)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CR120 (BU-OG)	20	CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE +
2	RR120 (BN-GN)	20	CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE -

Available Pigtail Kits
Pigtail Kit Part Number WPT-1222	Service Part Number: BU2Z-14S411-BEA  Gauge: 20  Pin material: FCI - Airbag  Cavities: 2  Vehicle Uses Pretensioner - Seat Belt (Driver) Squib - Airbag (Passenger)
